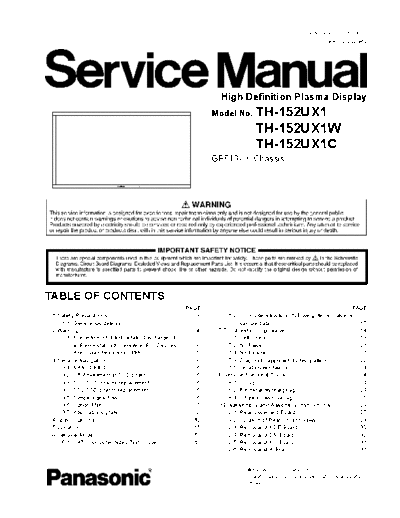

Image preview - the first page of the document
![Panasonic_TH-152UX1_TH-152UX1C_TH-152UX1W_[SM]](/pics/5c27b6639e9f0.gif)
>> Download Panasonic_TH-152UX1_TH-152UX1C_TH-152UX1W_[SM] documenatation <<
Text preview - extract from the document
Order Number ITD1011138CE
B34 Canada: B62
High Definition Plasma Display
Model No. TH-152UX1
TH-152UX1W
TH-152UX1C
GPF13UX Chassis
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 3 6.2. IIC mode structure (following items value is
1.1. General Guidelines---------------------------------------- 3 sample data) ---------------------------------------------- 17
2 Warning -------------------------------------------------------------- 4 7 Troubleshooting Guide --------------------------------------- 18
2.1. Prevention of Electrostatic Discharge (ESD) 7.1. Self Check ------------------------------------------------- 18
to Electrostatically Sensitive (ES) Devices---------- 4 7.2. No Power--------------------------------------------------- 21
2.2. About lead free solder (PbF)---------------------------- 5 7.3. No Picture-------------------------------------------------- 21
3 Service Navigation ----------------------------------------------- 6 7.4. Diagnostic approach by test pattern----------------- 22
3.1. NANODRIFT------------------------------------------------ 6 7.5. Local screen failure-------------------------------------- 23
3.2. VR Adjustment at SCD board -------------------------- 6 8 Service Fixture & Tools --------------------------------------- 24
3.3. SCU/SCD boards replacement ------------------------ 6 8.1. SC jig-------------------------------------------------------- 24
3.4. SSU/SSD boards replacement------------------------- 6 8.2. Electrical discharge jig ---------------------------------- 24
3.5. Simple signal flow ----------------------------------------- 6 8.3. L type screwdriver jig------------------------------------ 25
3.6. Option Menu ------------------------------------------------ 7 9 Disassembly and Assembly Instructions--------------- 26
3.7. Applicable signals ----------------------------------------- 9 9.1. Rear Cover and Board---------------------------------- 27
4 Specifications ----------------------------------------------------10 9.2. Location of Rear Cover screws----------------------- 28
5 Location ------------------------------------------------------------11 9.3. Removal of HDE-Board -------------------------------- 30
6 Service Mode -----------------------------------------------------13 9.4. Removal of DN-Board ---------------------------------- 30
6.1. CAT (Computer Aided Test) mode -------------------13 9.5. Removal of HX-Board----------------------------------- 31
9.6. Removal of A-Board------------------------------------- 31
