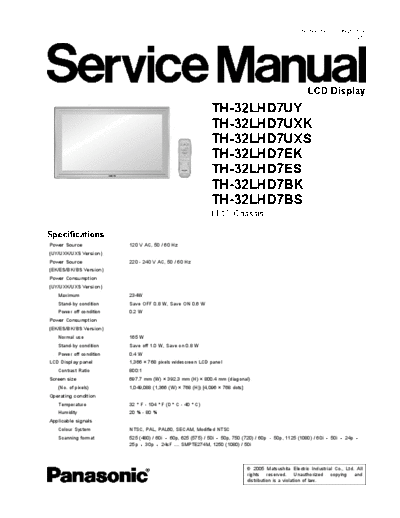

Image preview - the first page of the document
Panasonic_TH-32LHD7EK_TH-32LHD7BS_TH-32LHD7ES_TH-32LHD7UXS_TH-32LHD7BK_TH-32LHD7UXK_[SM]


>> Download Panasonic_TH-32LHD7EK_TH-32LHD7BS_TH-32LHD7ES_TH-32LHD7UXS_TH-32LHD7BK_TH-32LHD7UXK_[SM] documenatation <<

Text preview - extract from the document
                                                                                                   Order Number : ITD0502001CE
                                                                                                                           D10




                                                                                                        LCD Display
                                                             TH-32LHD7UY
                                                             TH-32LHD7UXK
                                                             TH-32LHD7UXS
                                                             TH-32LHD7EK
                                                             TH-32LHD7ES
                                                             TH-32LHD7BK
                                                             TH-32LHD7BS
                                                             LL10 Chassis

Specifications
Power Source             120 V AC, 50 / 60 Hz
(UY/UXK/UXS Version)
Power Source             220 - 240 V AC, 50 / 60 Hz
(EK/ES/BK/BS Version)
Power Consumption
(UY/UXK/UXS Version)
   Maximum               234W
   Stand-by condition    Save OFF 0.8 W, Save ON 0.6 W
   Power off condition   0.2 W
Power Consumption
(EK/ES/BK/BS Version)
   Normal use            165 W
   Stand-by condition    Save off 1.0 W, Save on 0.8 W
   Power off condition   0.4 W
LCD Display panel        1,366
