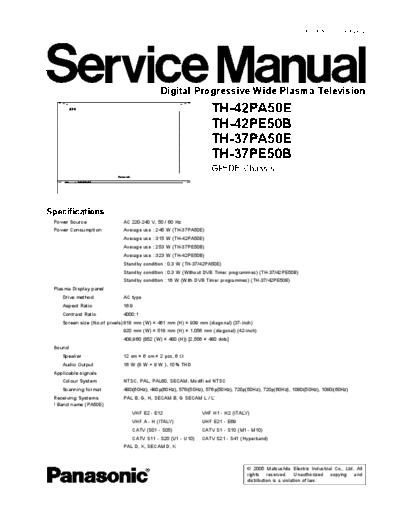

Image preview - the first page of the document
Panasonic_TH-37PA50E_TH-42PA50E_TH-37PE50B_TH-42PE50B_[SM]


>> Download Panasonic_TH-37PA50E_TH-42PA50E_TH-37PE50B_TH-42PE50B_[SM] documenatation <<

Text preview - extract from the document
                                                                                                         ORDER NO.PCZ0503029C2




                                             Digital Progressive Wide Plasma Television
                                                                   TH-42PA50E
                                                                   TH-42PE50B
                                                                   TH-37PA50E
                                                                   TH-37PE50B
                                                                   GP8DE Chassis




Specifications
 Power Source                AC 220-240 V, 50 / 60 Hz
 Power Consumption           Average use : 245 W (TH-37PA50E)
                             Average use : 315 W (TH-42PA50E)
                             Average use : 253 W (TH-37PE50B)
                             Average use : 323 W (TH-42PE50B)
                             Standby condition : 0.3 W (TH-37/42PA50E)
                             Standby condition : 0.3 W (Without DVB Timer programmes) (TH-37/42PE50B)
                             Standby condition : 16 W (With DVB Timer programmes) (TH-37/42PE50B)
 Plasma Display panel
    Drive method             AC type
    Aspect Ratio             16:9
    Contrast Ratio           4000:1
    Screen size (No.of pixels) 818 mm (W)
