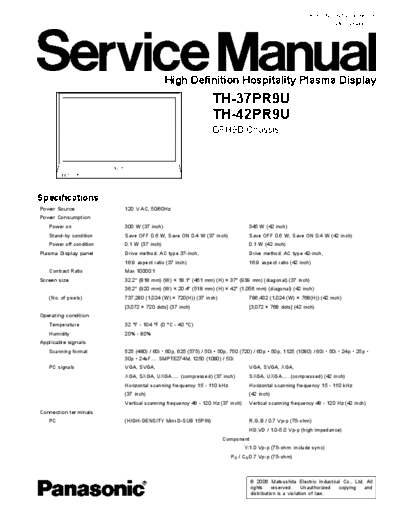

Image preview - the first page of the document



>> Download Panasonic_TH-37PR9U_TH-42PR9U_[SM] documenatation <<

Text preview - extract from the document

                                                                                                         ORDER NO. MTNC060585CE
                                                                                                                  D10 Canada: B07




                                           High Definition Hospitality Plasma Display
                                                             TH-37PR9U
                                                             TH-42PR9U
                                                             GPH9D Chassis




Specifications
Power Source             120 V AC, 50/60Hz
Power Consumption
   Power on              300 W (37 inch)                                       345 W (42 inch)
   Stand-by condition    Save OFF 0.6 W, Save ON 0.4 W (37 inch)               Save OFF 0.6 W, Save ON 0.4 W (42 inch)
   Power off condition   0.1 W (37 inch)                                       0.1 W (42 inch)
Plasma Display panel     Drive method: AC type 37-inch,                        Drive method: AC type 42-inch,
                         16:9 aspect ratio (37 inch)                           16:9 aspect ratio (42 inch)
   Contrast Ratio        Max 10000:1
Screen size              32.2" (818 mm) (W)
