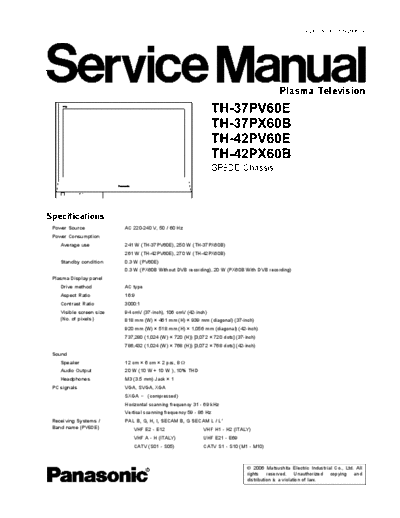

Image preview - the first page of the document
Panasonic_TH-37PV60B_TH-37PX60E_TH-42PV60B_TH-42PX60E_[SM]


>> Download Panasonic_TH-37PV60B_TH-37PX60E_TH-42PV60B_TH-42PX60E_[SM] documenatation <<

Text preview - extract from the document
                                                                                                        ORDER NO.PCZ0602005CE




                                                                                              Plasma Television




                                                                   GP9DE Chassis




Specifications
 Power Source             AC 220-240 V, 50 / 60 Hz
 Power Consumption
    Average use           241 W (TH-37PV60E), 250 W (TH-37PX60B)
                          261 W (TH-42PV60E), 270 W (TH-42PX60B)
    Standby condition     0.3 W (PV60E)
                          0.3 W (PX60B Without DVB recording), 20 W (PX60B With DVB recording)
 Plasma Display panel
    Drive method          AC type
    Aspect Ratio          16:9
    Contrast Ratio        3000:1
    Visible screen size   94 cmV (37-inch), 106 cmV (42-inch)
    (No. of pixels)       818 mm (W)
