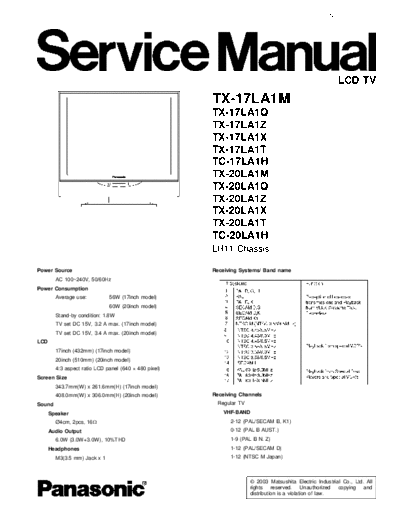

Image preview - the first page of the document
Panasonic_TX-17LA1_TX-20LA1_LH11_[SM]


>> Download Panasonic_TX-17LA1_TX-20LA1_LH11_[SM] documenatation <<

Text preview - extract from the document
                                                                                              ORDER NO. ITD0311071C3




                                                                                                          LCD TV
                                                       TX-17LA1M
                                                       TX-17LA1Q
                                                       TX-17LA1Z
                                                       TX-17LA1X
                                                       TX-17LA1T
                                                       TC-17LA1H
                                                       TX-20LA1M
                                                       TX-20LA1Q
                                                       TX-20LA1Z
                                                       TX-20LA1X
                                                       TX-20LA1T
                                                       TC-20LA1H
                                                       LH11 Chassis

Power Source                                           Receiving Systems/ Band name
        AC 100~240V, 50/60Hz
Power Consumption
        Average use:          56W (17inch model)
                              60W (20inch model)
        Stand-by condition: 1.8W
        TV set DC 15V, 3.2 A max. (17inch model)
        TV set DC 15V, 3.4 A max. (20inch model)
LCD
        17inch (432mm) (17inch model)
        20inch (510mm) (20inch model)
        4:3 aspect ratio LCD panel (640
