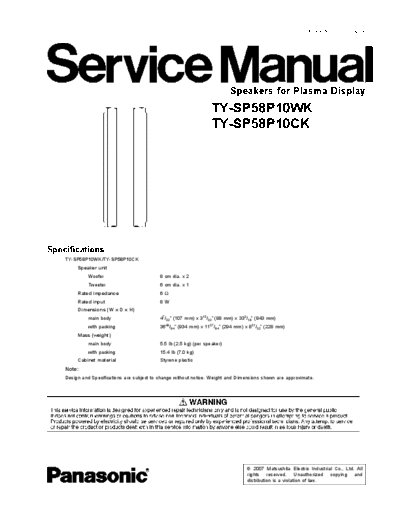

Image preview - the first page of the document



>> Download Panasonic_TY-SP58P10WK_TY-SP58P10CK_[SM] documenatation <<

Text preview - extract from the document

                                                                                                             ORDER No.ITD0707042CE




                                                                             Speakers for Plasma Display
                                                                     TY-SP58P10WK
                                                                     TY-SP58P10CK




Specifications
    TY-SP58P10WK/TY-SP58P10CK
         Speaker unit
             Woofer                          8 cm dia. x 2
             Tweeter                         6 cm dia. x 1
         Rated impedance                     6
         Rated input                         8W
         Dimensions (W x D x H)
             main body                       47/32" (107 mm) x 315/32" (88 mm) x 333/16" (843 mm)
             with packing                    3649/64" (934 mm) x 1137/64" (294 mm) x 831/32" (228 mm)
         Mass (weight)
             main body                       5.5 lb (2.5 kg) (per speaker)
             with packing                    15.4 lb (7.0 kg)
         Cabinet material                    Styrene plastic
    Note:
    Design and Specifications are subject to change without notice. Weight and Dimensions shown are approximate.
