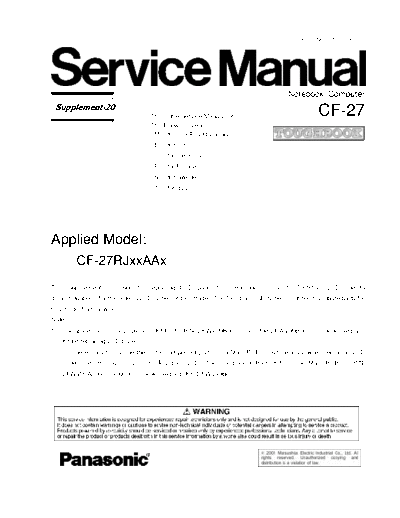

Image preview - the first page of the document
cf_27_sup_20


>> Download cf_27_sup_20 documenatation <<

Text preview - extract from the document
                                                                                        ORDER NO. CPD0107001S0




                                                                                    Notebook Computer
 Supplement-
 Supplement-20
                                   This is the Service Manual for                              CF-27
                                   The following areas.
                                    M ...for U.S.A. and Canada
                                    E ...for U.K.
                                    G ...for Germany
                                    F ...for France
                                    S ...for Sweden
                                    T ...for Italy




Applied Model:
         CF-27RJxxAAx
This Supplement is issued for replacing LCD panel from Hoshiden's LCD to Toshiba's LCD due to
discontinuation of a Hoshiden's LCD panel for this model. The Toshiba's LCD panel is supplied as spare parts for
this model from now on.
Note:
1. The spare parts is available as a Kit Parts "P/N: DFWV99B0077", and the DFWV99B0077 is the whole parts
   Kit for replacing LCD panel.
2. It is necessary to change the some component parts on a Main PCB simultaneously, when replacing LCD
   panel from Hoshiden's LCD to Toshiba's LCD. The Component Parts Kit for the Main PCB is "P/N:
   DFWV99A0055" included in the whole parts Kit "DFWV99B0077".
                               PART NO.
REF. NO. and AREA                                                           DESCRIPTION         Q'TY
                        ORIGINAL        NEW
                        ----------------   DFWV99B0077            KIT, LCD SERVICE PARTS         1
E 7                 ECXF6314D                ----------------    PCB, INVERTER                  1->0
E 7                    ----------------    ECXF6314G             PCB, INVERTER                  0->1
E 18                DL3DE0137AAA             ----------------    UNIT, LCD                      1->0
E 18                   ----------------    DL3DE0144CAA          UNIT, LCD                      0->1
K 3                 DFWV80A0233              ----------------    ASS'Y, CABINET, LCD FRONT      1->0
K 3                    ----------------    DFWV80A0251           ASS'Y, CABINET, LCD FRONT      0->1
                        ----------------   DFWV99A0055            KIT, ELECTRIC PARTS            1
C 512 514 515           ----------------    ECUV1C104ZFV         CAPACITOR, 16V, 0.1F           0->3
C 513                   ----------------    DCUJ1A105ZFL         CAPACITOR, 10V, 1F             0->1
C 516                   ----------------    DCUE1A106ZFL         CAPACITOR, 10V, 10F            0->1
IC 78                   ----------------    DAC63M63AX3H         IC, LVDS                       0->1
L 93 94                 ----------------    DDB5Z005-L           FERRITE BEAD                   0->2
L118 119 121 123
                    DDB5Z021F-Y               ----------------   FERRITE BEAD                   8->0
124 126 128 129
                        ----------------   DFWV99A0056            KIT, MECHANICAL/CABLE PARTS    1
K 950                   ----------------    DFMD3078ZA           ANGLE A, LCD                   0->1
K 951                   ----------------    DFMD3079ZA           ANGLE B, LCD                   0->1
K 952                   ----------------    DFMD3080ZA           ANGLE C, LCD                   0->1
K 953                   ----------------    DFMD3081YA           ANGLE D, LCD                   0->1
K 954                   ----------------    DLUP0137A01G         CABLE, LCD/INVERTER            0->1
K 955                   ----------------    DFMX0788ZA           SHEET, INSULATION, LCD         0->1
K 956                   ----------------    DFHG1353ZA           DAMPER, A                      0->1
K 957                   ----------------    DFHG1354ZA           DAMPER, B                      0->1
K 958                   ----------------    DFHG1355ZA           DAMPER, C                      0->1
K 959                   ----------------    DFHG425XA            DAMPER, D                      0->1
K 960                   ----------------    DFHG1357ZA           DAMPER, TOP                    0->1
K 961                   ----------------    DFHG1358ZA           DAMPER, BOTTOM                 0->1
K 962                   ----------------    DFHG1359ZA           DAMPER, REAR                   0->1
K 963                   ----------------    DFHE0354ZA           CONDUCTIVE SHEET, LCD          0->1
K 964                   ----------------    DFHE0365ZA           CONDUCTIVE SHEET, FPC          0->1
K 965                   ----------------    DFHP7089YA           TAPE, ANGLE                    0->1
K 966                   ----------------    DFHR7778ZA           SPACER, ANGLE                  0->4
K 967                   ----------------    DFHR7813ZA           SHEET, CABLE                   0->1
K 968                   ----------------    DFHR1059YA           SHEET, ANTENNA CABLE           0->1
K 969                   ----------------    DFQT9666ZA           SHEET, TOUGHBOOK               0->1
K 970                   ----------------    DFMX0383ZA           SHEET                          0->1




                                                     2
Exploded View




                3
Preparation for LCD Rear Cabinet
Note:

The parts that aren't included in the whole parts Kit "DFWV99B0077" are a re-use.




                                                       4
Preparation for LCD Panel (1)
Note:

The parts that aren't included in the whole parts Kit "DFWV99B0077" are a re-use.




                                                       5
Preparation for LCD Panel (2)
Note:

The parts that aren't included in the whole parts Kit "DFWV99B0077" are a re-use.




                                                       6
Assembly for LCD Unit
Note:

The parts that aren't included in the whole parts Kit "DFWV99B0077" are a re-use.




                                                       7
Change Parts for Main PCB
Delete and Add the component parts on Main PCB as shown in the figure below.
