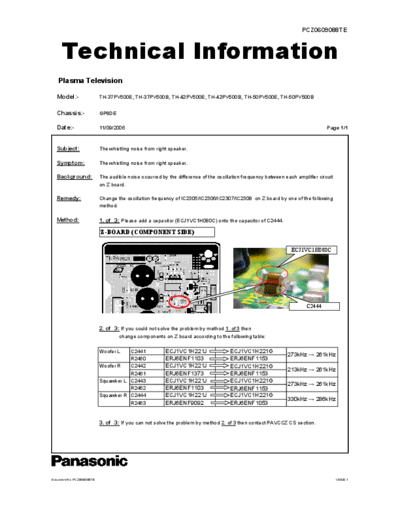

Image preview - the first page of the document



>> Download PCZ0609088TE documenatation <<

Text preview - extract from the document

                                                                                                                      PCZ0609088TE



     Technical Information
   Plasma Television

  Model:-                   TH-37PV500E, TH-37PV500B, TH-42PV500E, TH-42PV500B, TH-50PV500E, TH-50PV500B


  Chassis:-                 GP8DE

  Date:-                    11/09/2006                                                                                           Page 1/1



  Subject:                  The whistling noise from right speaker.

  Symptom:                  The whistling noise from right speaker.

  Background:               The audible noise occurred by the difference of the oscillation frequency between each amplifier circuit
                            on Z board.

  Remedy:                   Change the oscillation frequency of IC2305/IC2306/IC2307/IC2308 on Z board by one of the following
                            method.

  Method:                   1. of 3: Please add a capacitor (ECJ1VC1H080C) onto the capacitor of C2444.

                            Z-BOARD (COMPONENT SIDE)

                                                                                                                 ECJ1VC1H080C




                                                                                                                        C2444


                            2. of 3: If you could not solve the problem by method 1. of 3 then
                                    change components on Z board according to the following table:

                            Woofer L   C2441             ECJ1VC1H221J                 ECJ1VC1H221G
                                                                                                               273kHz  261kHz
                                       R2460             ERJ6ENF1103                  ERJ6ENF1153
                            Woofer R   C2442             ECJ1VC1H221J                 ECJ1VC1H221G
                                                                                                               213kHz  261kHz
                                       R2461             ERJ6ENF1373                  ERJ6ENF1153
                            Squawker L C2443             ECJ1VC1H221J                 ECJ1VC1H221G
                                                                                                               273kHz  261kHz
                                       R2462             ERJ6ENF1103                  ERJ6ENF1153
                            Squawker R C2444             ECJ1VC1H221J                 ECJ1VC1H221G
                                                                                                               330kHz  286kHz
                                       R2463             ERJ6ENF9092                  ERJ6ENF1053


                            3. of 3: If you can not solve the problem by method 2. of 3 then contact PAVCCZ CS section.




Document No: PCZ0609088TE                                                                                                              ISSUE:1
