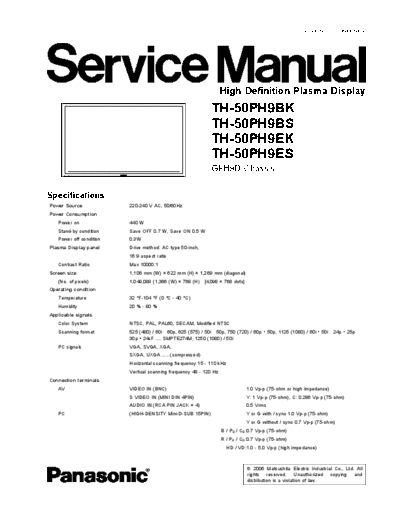

Image preview - the first page of the document



>> Download th_50ph9_b_e documenatation <<

Text preview - extract from the document

                                                                                                        ORDER NO. PCZ0608054CE




                                                                   High Definition Plasma Display
                                                             TH-50PH9BK
                                                             TH-50PH9BS
                                                             TH-50PH9EK
                                                             TH-50PH9ES
                                                             GPH9D Chassis


Specifications
Power Source             220-240 V AC, 50/60Hz
Power Consumption
   Power on              440 W
   Stand-by condition    Save OFF 0.7 W, Save ON 0.5 W
   Power off condition   0.3W
Plasma Display panel     Drive method: AC type 50-inch,
                         16:9 aspect ratio
   Contrast Ratio        Max 10000:1
Screen size              1,106 mm (W)
