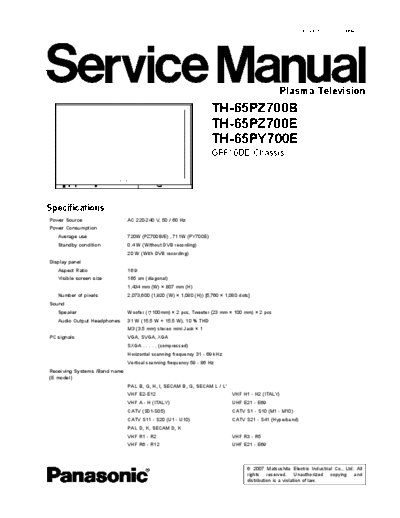

Image preview - the first page of the document
th_65pz700b


>> Download th_65pz700b documenatation <<

Text preview - extract from the document
                                                                                                          ORDER NO. PCZ0709091CE




                                                                                                   Plasma Television
                                                                    TH-65PZ700B
                                                                    TH-65PZ700E
                                                                    TH-65PY700E
                                                                    GPF10DE Chassis




Specifications
Power Source                   AC 220-240 V, 50 / 60 Hz
Power Consumption
   Average use                 720W (PZ700B/E) , 711W (PY700E)
   Standby condition           0.4 W (Without DVB recording)
                               20 W (With DVB recording)
Display panel
   Aspect Ratio                16:9
   Visible screen size         165 cm (diagonal)
                               1,434 mm (W)
