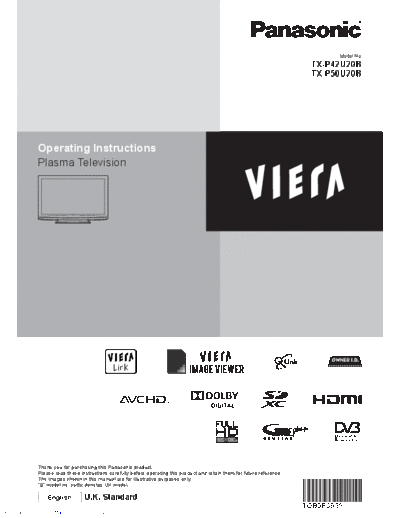

Image preview - the first page of the document
>> Download txp42u20b documenatation <<
Text preview - extract from the document
Model No.
TX-P42U20B
TX-P50U20B
Operating Instructions
Plasma Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
"B" model no. suffix denotes UK model.
English U.K. Standard
TQB0E0939
Downloaded from www.Manualslib.com manuals search engine
Features
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts
Easily select the programme or set Timer Programming by using TV Guide. (p. 18 - 20)
Instantly call up favourite channels with Favourites Edit. (p. 39)
FULL HD
This TV uses a high definition panel to produce high definition pictures close to their original resolution.
GUIDE Plus+ (p. 18)
This TV supports Gemstar-TV Guide sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 67)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
This TV incorporates HDMI (Version 1.4 with Audio Return Channel) and HDMI (Version 1.3a with x.v.ColourTM) technology.
VIERA IMAGE VIEWER - Media Player (p. 50 - 53)
Enjoy your photos or videos recorded on an SD Card on the TV screen.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
AVCHD
It is possible to play moving pictures recorded on an SD Card in AVCHD format.
AVCHD is a high definition video recording format. (p. 52)
Dolby Digital decoder
It is possible to decode Dolby Digital audio track (multi-channel sound) and output as a Dolby Digital
multi-channel sound signal from the DIGITAL AUDIO OUT terminal.
Link up and control the connected equipment with "Q-Link" and "VIERA Link" (p. 54 - 61)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated
settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 26)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS
button.
Owner ID (p. 47)
Owner ID is an anti-theft function. Entering the PIN number and owner's personal information will help the
Police to determine the owner in the case of theft.
Supports Audio Description signal (p. 15 and p. 29)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and
aids understanding and enjoyment, particularly for visually-impaired viewers.
You can switch Audio Description service Auto or Off, and adjust the volume of the description soundtrack
independently of the main volume.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by
TV region.
If you have any questions, please call Digital UK on 08456 50 50 50 or visit www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV
channels and some Digital TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue
channels are permanently turned off, it will not be possible to recover them.
To retune your TV "Auto Setup" in "DVB Tuning Menu"-DVB mode (p. 36)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels
via their aerial. (Your Analogue channel for viewing Cable or Satellite services will change to a new
position.)
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some
cases, despite good reception of analogue channels.
2
Downloaded from www.Manualslib.com manuals search engine
Contents
Be Sure to Read
Intelligent Frame Creation
