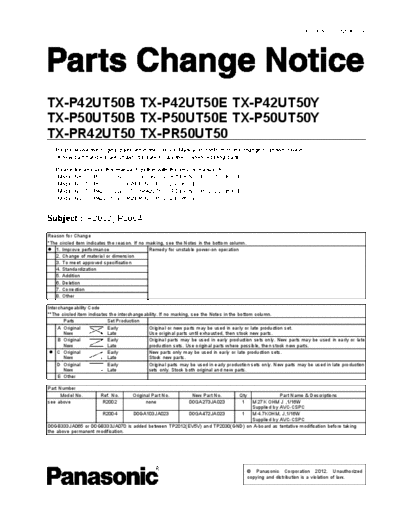

                                                                                                                   ORDER NO. ITD1204017PE




TX-P42UT50B TX-P42UT50E TX-P42UT50Y
TX-P50UT50B TX-P50UT50E TX-P50UT50Y
TX-PR42UT50 TX-PR50UT50
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TX-P50UT50B/Y, TX-PR50UT50 ORDER NO. PCZ1203062CE
    Model   No. TX-P50UT50E ORDER NO. PCZ1203063CE
    Model   No. TX-P42UT50B/Y, TX-PR42UT50 ORDER NO. PCZ1203064CE
    Model   No. TX-P42UT50E ORDER NO. PCZ1203065CE


Subject : R2002, R2004
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance                      Remedy for unstable power-on operation
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other

Part Number
      Model No.         Ref. No.      Original Part No.          New Part No.         QtyPart Name & Descriptions
see above                R2002              none                D0GA273JA023           1
                                                                             M 27K OHM J ,1/16W
                                                                             Supplied by AVC-CSPC
                      R2004       D0GA103JA023       D0GA472JA023        1   M 4.7KOHM, J,1/16W
                                                                             Supplied by AVC-CSPC
D0GB333JA065 or D0GB333JA070 is added between TP2012(EV5V) and TP2030(GND) on A-board as tentative modification before taking
the above permanent modification.
