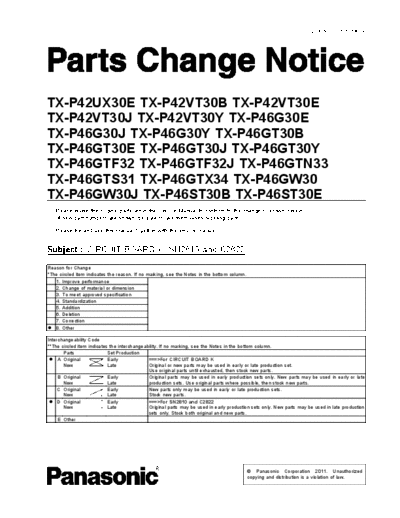

Text preview - extract from the document

                                                                                                                    ORDER NO.ITD1111138PE




TX-P42UX30E TX-P42VT30B TX-P42VT30E
TX-P42VT30J TX-P42VT30Y TX-P46G30E
TX-P46G30J TX-P46G30Y TX-P46GT30B
TX-P46GT30E TX-P46GT30J TX-P46GT30Y
TX-P46GTF32 TX-P46GTF32J TX-P46GTN33
TX-P46GTS31 TX-P46GTX34 TX-P46GW30
TX-P46GW30J TX-P46ST30B TX-P46ST30E
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please file and use this manual together with the service manual.


Subject : CIRCUIT BOARD K, SN2810 and C2822
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             ===>For CIRCUIT BOARD K
       New                  Late              Original or new parts may be used in early or late production set.
                                              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             ===>For SN2810 and C2822
       New                  Late              Original parts may be used in early production sets only. New parts may be used in late production
                                              sets only. Stock both original and new parts.
