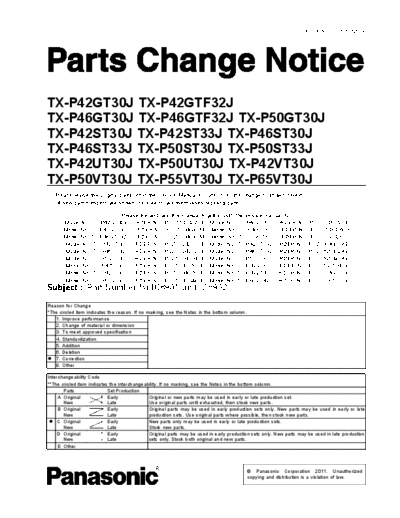

Image preview - the first page of the document



>> Download tx_p_IC8901_pcn129 documenatation <<

Text preview - extract from the document

                                                                                                                   ORDER NO. ITD1110129PE




TX-P42GT30J TX-P42GTF32J
TX-P46GT30J TX-P46GTF32J TX-P50GT30J
TX-P42ST30J TX-P42ST33J TX-P46ST30J
TX-P46ST33J TX-P50ST30J TX-P50ST33J
TX-P42UT30J TX-P50UT30J TX-P42VT30J
TX-P50VT30J TX-P55VT30J TX-P65VT30J
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

                           Please file and use this manual together with the service manual for
       Model No. TX-P42GT30E, ORDER NO. PCZ1103022CE,, Model No. TX-P42GT30J, ORDER NO. PCZ1103022CE
       Model No. TX-P42GTF32J, ORDER NO. PCZ1104030AE,, Model No. TX-P46GT30J, ORDER NO. PCZ1103024CE
       Model No. TX-P46GTF32J, ORDER NO. PCZ1104035AE,, Model No. TX-P50GT30J, ORDER NO. PCZ1103026CE
        Model No. TX-P42ST30J, ORDER NO. PCZ1104070CE,, Model No. TX-P42ST33J, ORDER NO. PCZ1104088AE
        Model No. TX-P46ST30J, ORDER NO. PCZ1104072CE,, Model No. TX-P46ST33J, ORDER NO. PCZ1105089AE
        Model No. TX-P50ST30J, ORDER NO. PCZ1104074CE,, Model No. TX-P50ST33J, ORDER NO. PCZ1105090AE
       Model No. TX-P42UT30J, ORDER NO. PCZ1106110CE,, Model No. TX-P50UT30J, ORDER NO. PCZ1107114CE
       Model No. TX-P42VT30J, ORDER NO. PCZ1104076CE,, Model No. TX-P50VT30J, ORDER NO. PCZ1104078CE
       Model No. TX-P55VT30J, ORDER NO. PCZ1105099CE,, Model No. TX-P65VT30J, ORDER NO. PCZ1106103CE
Subject : Part Number for IC8901 and IC8902
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other
