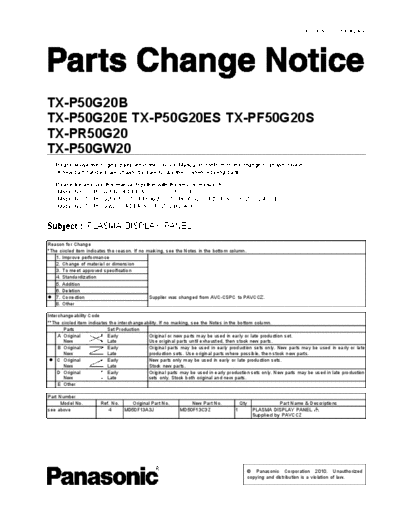

Image preview - the first page of the document



>> Download tx_p50g20b_e_pcn1 documenatation <<

Text preview - extract from the document

                                                                                                                     ORDER NO. ITD1004024PE




TX-P50G20B
TX-P50G20E TX-P50G20ES TX-PF50G20S
TX-PR50G20
TX-P50GW20
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TX-P50G20B ORDER NO. PCZ1002008CE
    Model   No. TX-P50G20E/ES, TX-PF50G20S, TX-PR50G20 ORDER NO. PCZ1002007CE
    Model   No. TX-P50GW20 ORDER NO. PCZ1003014CE


Subject : PLASMA DISPLAY PANEL
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction                               Supplier was changed from AVC-CSPC to PAVCCZ.
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other

Part Number
      Model No.         Ref. No.     Original Part No.          New Part No.             Qty               Part Name & Descriptions
see above                  4       MD50F13A3J               MD50F13C3Z               1          PLASMA DISPLAY PANEL
                                                                                                Supplied by PAVCCZ
