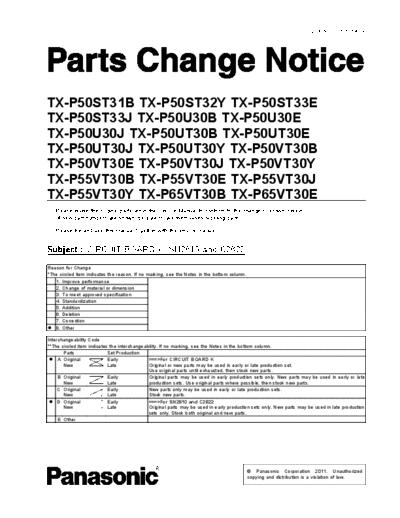

Text preview - extract from the document

                                                                                                                    ORDER NO.ITD1111140PE




TX-P50ST31B TX-P50ST32Y TX-P50ST33E
TX-P50ST33J TX-P50U30B TX-P50U30E
TX-P50U30J TX-P50UT30B TX-P50UT30E
TX-P50UT30J TX-P50UT30Y TX-P50VT30B
TX-P50VT30E TX-P50VT30J TX-P50VT30Y
TX-P55VT30B TX-P55VT30E TX-P55VT30J
TX-P55VT30Y TX-P65VT30B TX-P65VT30E
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please file and use this manual together with the service manual.


Subject : CIRCUIT BOARD K, SN2810 and C2822
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             ===>For CIRCUIT BOARD K
       New                  Late              Original or new parts may be used in early or late production set.
                                              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             ===>For SN2810 and C2822
       New                  Late              Original parts may be used in early production sets only. New parts may be used in late production
                                              sets only. Stock both original and new parts.
     E Other
