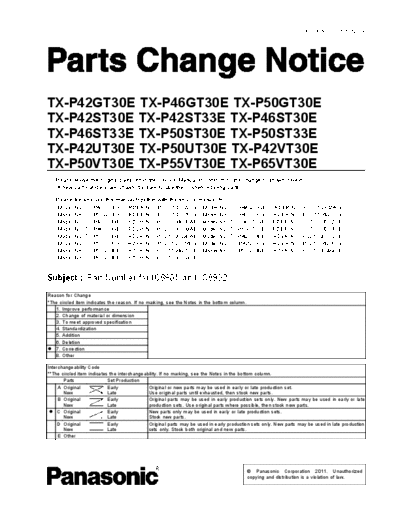

Image preview - the first page of the document



>> Download tx_p_IC8901_pcn127 documenatation <<

Text preview - extract from the document

                                                                                                                   ORDER NO. ITD1110127PE




TX-P42GT30E TX-P46GT30E TX-P50GT30E
TX-P42ST30E TX-P42ST33E TX-P46ST30E
TX-P46ST33E TX-P50ST30E TX-P50ST33E
TX-P42UT30E TX-P50UT30E TX-P42VT30E
TX-P50VT30E TX-P55VT30E TX-P65VT30E
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TX-P42GT30E, ORDER NO. PCZ1103022CE,, Model No. TX-P46GT30E, ORDER NO. PCZ1103024CE
    Model   No. TX-P50GT30E, ORDER NO. PCZ1103026CE,, Model No. TX-P42ST30E, ORDER NO. PCZ1104070CE
    Model   No. TX-P42ST33E, ORDER NO. PCZ1104088AE,, Model No. TX-P46ST30E, ORDER NO. PCZ1104072CE
    Model   No. TX-P46ST33E, ORDER NO. PCZ1105089AE,, Model No. TX-P50ST30E, ORDER NO. PCZ1104074CE
    Model   No. TX-P50ST33E, ORDER NO. PCZ1105090AE,, Model No. TX-P42UT30E, ORDER NO. PCZ1106110CE
    Model   No. TX-P50UT30E, ORDER NO. PCZ1107114CE,, Model No. TX-P42VT30E, ORDER NO. PCZ1104076CE
    Model   No. TX-P50VT30E, ORDER NO. PCZ1104078CE,, Model No. TX-P55VT30E, ORDER NO. PCZ1105099CE
    Model   No. TX-P65VT30E, ORDER NO. PCZ1106103CE


Subject : Part Number for IC8901 and IC8902
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other
