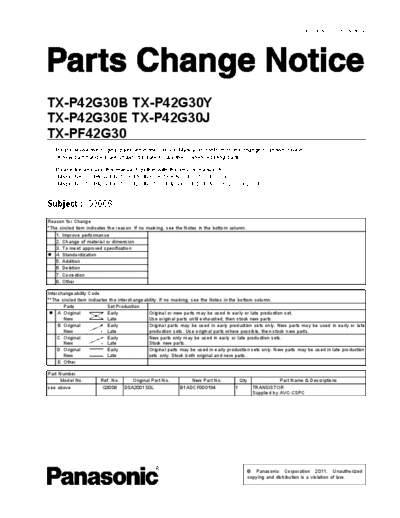

Image preview - the first page of the document



>> Download tx_p42g30_pcn1 documenatation <<

Text preview - extract from the document

                                                                                                                     ORDER NO. ITD1105039PE




TX-P42G30B TX-P42G30Y
TX-P42G30E TX-P42G30J
TX-PF42G30
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please file and use this manual together with the service manual for
    Model No. TX-P42G30B TX-P42G30Y ORDER NO. PCZ1103027CE
    Model No. TX-P42G30E TX-P42G30J TX-PF42G30 ORDER NO. PCZ1103028CE


Subject : Q3008
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             Original or new parts may be used in early or late production set.
       New                  Late              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             Original parts may be used in early production sets only. New parts may be used in late production
       New                  Late              sets only. Stock both original and new parts.
     E Other

Part Number
      Model No.         Ref. No.      Original Part No.         New Part No.             Qty                Part Name & Descriptions
see above                Q3008     DSA2001S0L               B1ADCF000194             1          TRANSISTOR
                                                                                                Supplied by AVC-CSPC
