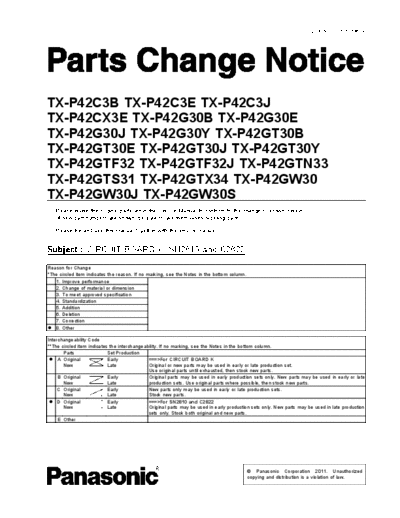

Image preview - the first page of the document



>> Download k_board_pcn_136 documenatation <<

Text preview - extract from the document

                                                                                                                    ORDER NO.ITD1111136PE




TX-P42C3B TX-P42C3E TX-P42C3J
TX-P42CX3E TX-P42G30B TX-P42G30E
TX-P42G30J TX-P42G30Y TX-P42GT30B
TX-P42GT30E TX-P42GT30J TX-P42GT30Y
TX-P42GTF32 TX-P42GTF32J TX-P42GTN33
TX-P42GTS31 TX-P42GTX34 TX-P42GW30
TX-P42GW30J TX-P42GW30S
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please file and use this manual together with the service manual.


Subject : CIRCUIT BOARD K, SN2810 and C2822
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other

Interchangeability Code
**The circled item indicates the interchangeability. If no marking, see the Notes in the bottom column.
       Parts                Set Production
     A Original             Early             ===>For CIRCUIT BOARD K
       New                  Late              Original or new parts may be used in early or late production set.
                                              Use original parts until exhausted, then stock new parts.
     B Original             Early             Original parts may be used in early production sets only. New parts may be used in early or late
       New                  Late              production sets. Use original parts where possible, then stock new parts.
     C Original             Early             New parts only may be used in early or late production sets.
       New                  Late              Stock new parts.
     D Original             Early             ===>For SN2810 and C2822
       New                  Late              Original parts may be used in early production sets only. New parts may be used in late production
                                              sets only. Stock both original and new parts.
     E Other
