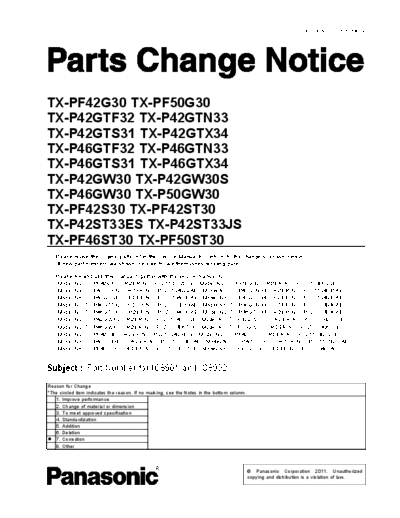

                                                                                                                   ORDER NO. ITD1110130PE




TX-PF42G30 TX-PF50G30
TX-P42GTF32 TX-P42GTN33
TX-P42GTS31 TX-P42GTX34
TX-P46GTF32 TX-P46GTN33
TX-P46GTS31 TX-P46GTX34
TX-P42GW30 TX-P42GW30S
TX-P46GW30 TX-P50GW30
TX-PF42S30 TX-PF42ST30
TX-P42ST33ES TX-P42ST33JS
TX-PF46ST30 TX-PF50ST30
   Please revise the original parts list in the Service Manual to conform to the change(s) shown herein.
    If new part numbers are shown, be sure to use them when ordering parts.

   Please   file and use this manual together with the service manual for
    Model   No. TX-PF42G30, ORDER NO. PCZ1103028CE,, Model No. TX-PF50G30, ORDER NO. PCZ1104060CE
    Model   No. TX-P42GTF32, ORDER NO. PCZ1104029AE,, Model No. TX-P42GTN33, ORDER NO. PCZ1104031AE
    Model   No. TX-P42GTS31, ORDER NO. PCZ1104032AE,, Model No. TX-P42GTX34, ORDER NO. PCZ1104033AE
    Model   No. TX-P46GTF32, ORDER NO. PCZ1104034AE,, Model No. TX-P46GTN33, ORDER NO. PCZ1104036AE
    Model   No. TX-P46GTS31, ORDER NO. PCZ1104037AE,, Model No. TX-P46GTX34, ORDER NO. PCZ1104038AE
    Model   No. TX-P42GW30, ORDER NO. PCZ1104058CE,, Model No. TX-P42GW30S, ORDER NO. PCZ1104058CE
    Model   No. TX-P46GW30, ORDER NO. PCZ1104067CE,, Model No. TX-P50GW30, ORDER NO. PCZ1104068CE
    Model   No. TX-PF42S30, ORDER NO. PCZ1104084CE,, Model No. TX-PF42ST30, ORDER NO. PCZ1104070CE
    Model   No. TX-P42ST33ES, ORDER NO. PCZ1105088AE,, Model No. TX-P42ST33JS, ORDER NO. PCZ1105088AE
    Model   No. TX-PF46ST30, ORDER NO. PCZ1104072CE,, Model No. TX-PF50ST30, ORDER NO. PCZ1104074CE


Subject : Part Number for IC8901 and IC8902
Reason for Change
*The circled item indicates the reason. If no marking, see the Notes in the bottom column.
   1. Improve performance
   2. Change of material or dimension
   3. To meet approved specification
   4. Standardization
   5. Addition
   6. Deletion
   7. Correction
   8. Other
