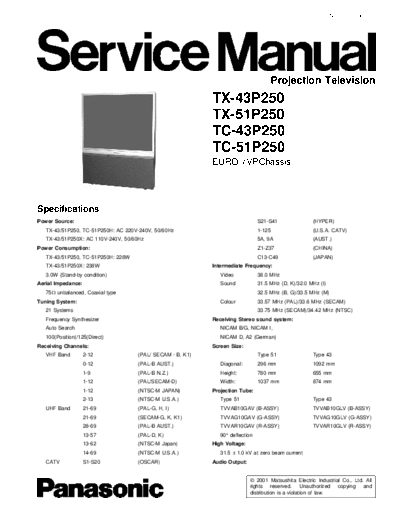

Image preview - the first page of the document
>> Download ITD0110012C3[1] documenatation <<Text preview - extract from the document ORDER NO. ITD0110012C3
Projection Television
TX-43P250
TX-51P250
TC-43P250
TC-51P250
EURO-7VPChassis
Specifications
Power Source: S21-S41 (HYPER)
TX-43/51P250, TC-51P250H: AC 220V-240V, 50/60Hz 1-125 (U.S.A. CATV)
TX-43/51P250X: AC 110V-240V, 50/60Hz 5A, 9A (AUST.)
Power Consumption: Z1-Z37 (CHINA)
TX-43/51P250, TC-51P250H: 228W C13-C49 (JAPAN)
TX-43/51P250X: 238W Intermediate Frequency:
3.0W (Stand-by condition) Video 38.0 MHz
Aerial Impedance: Sound 31.5 MHz (D, K)/32.0 MHz (I)
759 unbalanced, Coaxial type 32.5 MHz (B, G)/33.5 MHz (M)
Tuning System: Colour 33.57 MHz (PAL)/33.6 MHz (SECAM)
21 Systems 33.75 MHz (SECAM)/34.42 MHz (NTSC)
Frequency Synthesizer Receiving Stereo sound system:
Auto Search NICAM B/G, NICAM I,
100(Position)/125(Direct) NICAM D, A2 (German)
Receiving Channels: Screen Size:
VHF Band 2-12 (PAL/ SECAM - B, K1) Type 51 Type 43
0-12 (PAL-B AUST.) Diagonal: 296 mm 1092 mm
1-9 (PAL-B N.Z.) Height: 780 mm 655 mm
1-12 (PAL/SECAM-D) Width: 1037 mm 874 mm
1-12 (NTSC-M JAPAN) Projection Tube:
2-13 (NTSC-M U.S.A.) Type 51 Type 43
UHF Band 21-69 (PAL-G, H, I) TVVAB10GAV (B-ASSY) TVVAB10GLV (B-ASSY)
21-69 (SECAM-G, K, K1) TVVAG10GAV (G-ASSY) TVVAG10GLV (G-ASSY)
28-69 (PAL-B AUST.) TVVAR10GAV (R-ASSY) TVVAR10GLV (R-ASSY)
13-57 (PAL-D, K) 90
