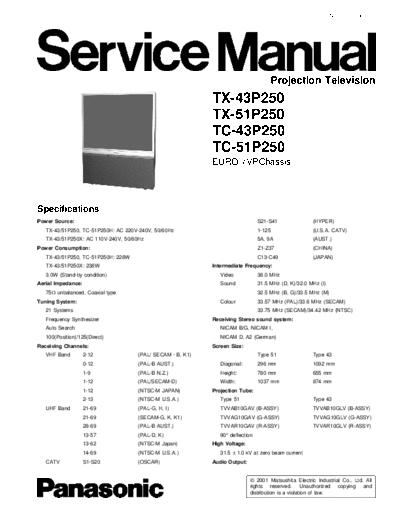

Image preview - the first page of the document



>> Download ITD0110012C3[1] documenatation <<

Text preview - extract from the document

                                                                                                   ORDER NO. ITD0110012C3




                                                                                       Projection Television
                                                           TX-43P250
                                                           TX-51P250
                                                           TC-43P250
                                                           TC-51P250
                                                           EURO-7VPChassis




Specifications
Power Source:                                                                  S21-S41               (HYPER)
   TX-43/51P250, TC-51P250H: AC 220V-240V, 50/60Hz                             1-125                 (U.S.A. CATV)
   TX-43/51P250X: AC 110V-240V, 50/60Hz                                        5A, 9A                (AUST.)
Power Consumption:                                                             Z1-Z37                (CHINA)
   TX-43/51P250, TC-51P250H: 228W                                              C13-C49               (JAPAN)
   TX-43/51P250X: 238W                                     Intermediate Frequency:
   3.0W (Stand-by condition)                                  Video            38.0 MHz
Aerial Impedance:                                             Sound            31.5 MHz (D, K)/32.0 MHz (I)
   759 unbalanced, Coaxial type                                                32.5 MHz (B, G)/33.5 MHz (M)
Tuning System:                                                Colour           33.57 MHz (PAL)/33.6 MHz (SECAM)
   21 Systems                                                                  33.75 MHz (SECAM)/34.42 MHz (NTSC)
   Frequency Synthesizer                                   Receiving Stereo sound system:
   Auto Search                                                NICAM B/G, NICAM I,
   100(Position)/125(Direct)                                  NICAM D, A2 (German)
Receiving Channels:                                        Screen Size:
   VHF Band         2-12            (PAL/ SECAM - B, K1)                       Type 51               Type 43
                    0-12            (PAL-B AUST.)             Diagonal:        296 mm                1092 mm
                    1-9             (PAL-B N.Z.)              Height:          780 mm                655 mm
                    1-12            (PAL/SECAM-D)             Width:           1037 mm               874 mm
                    1-12            (NTSC-M JAPAN)         Projection Tube:
                    2-13            (NTSC-M U.S.A.)           Type 51                                Type 43
   UHF Band         21-69           (PAL-G, H, I)             TVVAB10GAV (B-ASSY)                    TVVAB10GLV (B-ASSY)
                    21-69           (SECAM-G, K, K1)          TVVAG10GAV (G-ASSY)                    TVVAG10GLV (G-ASSY)
                    28-69           (PAL-B AUST.)             TVVAR10GAV (R-ASSY)                    TVVAR10GLV (R-ASSY)
                    13-57           (PAL-D, K)                90
