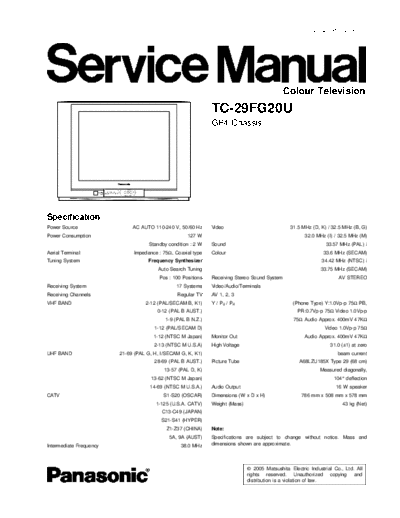

Image preview - the first page of the document
>> Download panasonic_tc-29fg20u_ch_gp4 documenatation <<Text preview - extract from the document Order No. MTV0501392C3
Colour Television
TC-29FG20U
GP4 Chassis
Specification
Power Source AC AUTO 110-240 V, 50/60 Hz Video 31.5 MHz (D, K) / 32.5 MHz (B, G)
Power Consumption 127 W 32.0 MHz (I) / 32.5 MHz (M)
Standby condition : 2 W Sound 33.57 MHz (PAL) /
Aerial Terminal Impedance : 75, Coaxial type Colour 33.6 MHz (SECAM)
Tuning System Frequency Synthesizer 34.42 MHz (NTSC) /
Auto Search Tuning 33.75 MHz (SECAM)
Pos : 100 Positions Receiving Stereo Sound System AV STEREO
Receiving System 17 Systems Video/Audio/Terminals
Receiving Channels Regular TV AV 1, 2, 3
VHF BAND 2-12 (PAL/SECAM B, K1) Y / PB / PR (Phone Type) Y:1.0Vp-p 75 PB,
0-12 (PAL B AUST.) PR:0.7Vp-p 75 Video 1.0Vp-p
1-9 (PAL B N.Z.) 75 Audio Approx. 400mV 47K
1-12 (PAL/SECAM D) Video 1.0Vp-p 75
1-12 (NTSC M Japan) Monitor Out Audio Approx. 400mV 47K
2-13 (NTSC M U.S.A) High Voltage 31.0 (
