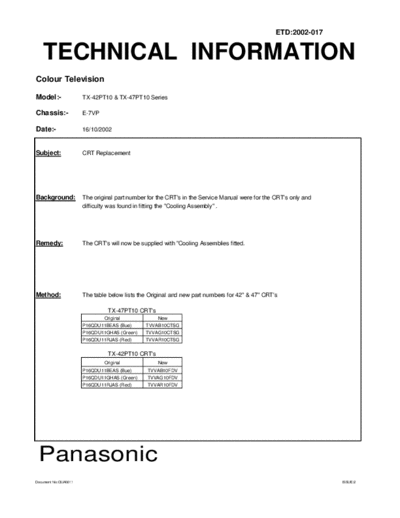

Image preview - the first page of the document
d_42pt10_crtchange


>> Download d_42pt10_crtchange documenatation <<

Text preview - extract from the document
                                                                                                ETD:2002-017


   TECHNICAL INFORMATION
Colour Television

Model:-               TX-42PT10 & TX-47PT10 Series

Chassis:-             E-7VP

Date:-                16/10/2002


Subject:              CRT Replacement




Background:           The original part number for the CRT's in the Service Manual were for the CRT's only and
                      difficulty was found in fitting the "Cooling Assembly" .




Remedy:               The CRT's will now be supplied with "Cooling Assemblies fitted.




Method:               The table below lists the Original and new part numbers for 42" & 47" CRT's

                               TX-47PT10 CRT's
                              Original             New
                      P16QDU11BEAS (Bue)      TVVAB10CTSG
                      P16QDU11GHAS (Green)    TVVAG10CTSG
                      P16QDU11RJAS (Red)      TVVAR10CTSG


                               TX-42PT10 CRT's
                              Original             New
                      P16QDU11BEAS (Bue)       TVVAB10FDV
                      P16QDU11GHAS (Green)     TVVAG10FDV
                      P16QDU11RJAS (Red)       TVVAR10FDV




 Panasonic
Document No:QUA0011                                                                                              ISSUE:2
