>> Download KX-TDA15 documenatation <<Text preview - extract from the document Hybrid IP-PBX

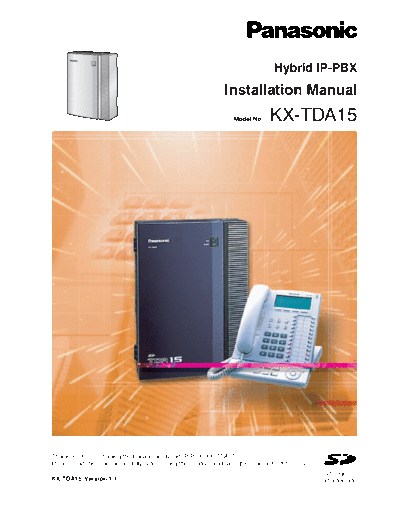

Installation Manual
Model No. KX-TDA15
Thank you for purchasing the Panasonic Hybrid IP-PBX, KX-TDA15.
Please read this manual carefully before using this product and save this manual for future use.
SD Logo is
KX-TDA15: Version 1.1 a trademark.
System Components
System Components Table
Model Description
Main Unit KX-TDA15 Main Unit
Trunk Cards KX-TDA3183 2-Port Analogue Trunk Card (LCOT2)
KX-TDA3280 2-Port BRI Card (BRI2)
KX-TDA3283 1-Port BRI Card (BRI1)
KX-TDA3480 4-Channel VoIP Gateway Card (IP-GW4)
Extension Cards KX-TDA3172 8-Port Digital Extension Card (DLC8)
KX-TDA3174 8-Port Single Line Telephone Extension Card (SLC8)
Other Cards KX-TDA3161 4-Port Doorphone Card (DPH4)
KX-TDA3162 2-Port Doorphone Card (German Type) (DPH2)
KX-TDA3166 8-Channel Echo Canceller Card (ECHO8)
KX-TDA3191 2-Channel Message Card (MSG2)
