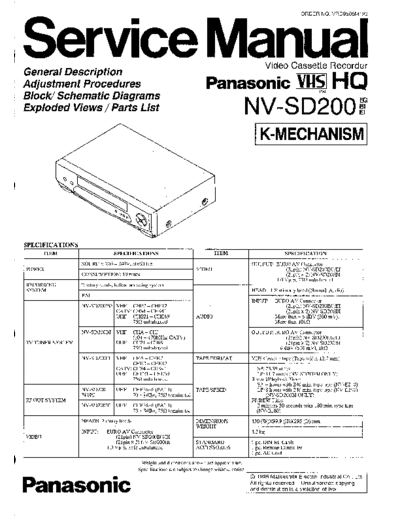

Image preview - the first page of the document
>> Download Panasonic_NV-SD200_VCR_Full documenatation <<
Text preview - extract from the document
TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] Product Group: VCR Model: NV-SD200B Date: 05/11/98 Revision No: 01 Document No: 02 Subject: Common Faults CHANNEL LOCK UP PROBLEM SYMPTOM: The position on the Front Information Panel (FIP) can be changed or locked but the tuner picture is always the same when the customer changes the channel on the VCR. Also, there is no OSD. CAUSE: The channel data transmission between IC7706 and IC7704 (serial clock & serial data) is corrupted (permanently keeping the signal HIGH), but data transmission of the OSD microprocessor and system microprocessor are correct (for FIP display). Therefore, the result being that the FIP display works properly but the tuner data does not, resulting in an error. REMEDY: Please add the oscillation circuit to prevent the noise effect on IC7708. Reference No. Add the Parts Delete the Parts X7701 VSX0875 ---------- C7740 ECUM1H150JCN ---------- C7741 ECUM1H150JCN ---------- R7798 ERJ6GMYJ102 ---------- C7733 ---------- ECUN1H103ZFN Please refer to the details of the new circuit layout on the next page. PARTS KIT NUMBER VSX0875KIT Panasonic CS U.K. Document No: 02 Model: NV-SD200B 1 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] Product Group: Video Cassette Recorder Model: NV-SD200B Date: 30/04/99 Revision No: 01 Document No: 03 Subject: Parts Kit for Power Supply We are pleased to introduce to you the repairing parts kit for power supply circuit which are useful to effectively perform the following models. The list of these parts kit and each parts number and applicable model numbers are as shown below. Please note that the present individual parts contained in these kits will also be supplied. 1. Schematic diagram H These parts may be damaged due to abnormal oscillation of Q1101. Panasonic CS U.K. Document No: 03 Model: NV-SD200B 1 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] Product Group: VHS Video Model: NV-SD200B Date: 25/09/98 Revision No: 01 Document No: 01 Subject: No Sound Using PDC & Non-UK OSD Standard NO SOUND USING PDC (See models above) SYMPTOM: No audio on Programmed Delivery Control (PDC) recordings. CAUSE: Due to tolerance of channel carrier frequency (+/- 200KHz) audio mute may occur particularly on cable systems. REMEDY: Where no sound is recorded using PDC we advise that re-tuning is carried out as follows to store new value for channel offset frequency:- 1) Switch the VTR ON. 2) Switch the machine into shipping condition following the procedures laid out in the appropriate instruction manual. (This should result in memory erasure). 3) Switch the machine OFF at the mains. 4) Turning the VTR back ON will initiate the Auto Setup Procedure. If problem persists, please contact Technical Support on 01344-853501. NON UK OSD STANDARD (SD400/HD600 Only) SYMPTOM: Incorrect OSD data code, resulting in wrong video plus codes and auto time setting not working. CAUSE: There is a possibility of the data from IC7704 (EEPROM) getting corrupted by disturbances on the serial data line between IC7706 (OSD uProcessor), IC7704 (EEPROM) and IC7708 (TEXT IC). This can be due to switching of power supply or by static current (thunder). REMEDY: Change the supply voltage (VDD) of IC7708 (Pins 1, 10) to non-switch 5V from Reg. 5V. 1. Remove L7704. 2. Add a jumper wire between Pin 28 IC7701 and positive side of C7714. Reset the OSD data following the procedure in the appropriate service manual (Page 1-1). EFFECTIVE FROM: Serial number H5BB. . . . . Panasonic CS U.K. Document No: 01 Model: NV-SD200B 1 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] 2. Model number and parts kit number a) NV-SD400B, NV-SD450B, NV-HD600B, NV-HD650B The parts kit number is VUE4123KIT b) NV-SD200B, NV-SD260B, NV-SD410B The parts kit number is VUE4124KIT c) NV-HD605B, NV-HD610B, NV-HD660B The parts kit number is VUE4125KIT a) VUE4123KIT b) VUE4124KIT c) VUE4125KIT No. Ref. No. Parts No. No. Ref. No. Parts No. No. Ref. No. Parts No. 1 IC1101 TDA4605-3 1 IC1101 TDA4605-3 1 IC1101 TDA4605-3 2 Q1101 STP3N60F1-M 2 Q1101 STP3N60F1-M 2 Q1101 STP3N60 3 Q1102 2SD601A 3 Q1102 2SD637 3 Q1102 2SD637 4 Q1105 2SD601A 4 Q1105 2SD637 4 Q1111 M0C8104T 5 Q1107 M0C8104FR2 5 Q1111 M0C8104FR2 5 QR1101 UN1114 6 Q1111 M0C8104FR2 6 QR1101 UN1114 6 D1104 MA185 7 QR1101 UN2114 7 D1104 MA178 7 D1126 MA4043-L 8 QR1104 MUN2212 8 D1126 MA4043-L 8 D1127 MA165 9 D1104 MA178 9 D1127 MA165 9 F1101 XBA2C16TH15 10 D1126 MA4047-M 10 F1101 XBA2C16TH15 10 R1109 ERDS2FJ221 11 D1127 1SS355 11 R1109 ERDS2FJ221 11 R1114 ERX12SJR75 12 F1101 XBA2C16TH15 12 R1114 ERX12SJR51 12 R1116 ERDS2FJ100 13 R1109 ERJ6GMYJ221 13 R1116 ERDS2FJ100 13 R1117 ERDS2FJ472 14 R1114 ERX12SJR51 14 R1117 ERDS2FJ472 14 R1128 ERDS2FJ332 15 R1116 ERJ6GMYG100 15 R1127 ERDS2FJ333 15 R1129 ERDS2FJ123 16 R1117 ERJ6GMYG472 16 R1128 ERDS2FJ332 16 R1118 ERG1SJ100 H17 R1123 ERJ6GMZ0R00 17 R1129 ERDS2FJ223 18 R1127 ERJ6GMYG333 18 R1106 ERDS3FJ221 19 R1128 ERJ6GMYG332 19 R1118 ERG1SJ100 20 R1129 ERJ6GMYG223 21 R1116 ERG1SJ100 H It is only for NV-SD450 R1118 is used for modification as T/1 No. VRD9610TC11. d) NV-SD350AM, NV-SD450A/EA/EU Panasonic CS U.K. Document No: 03 Model: NV-SD200B 2 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] The parts kit number is VUE4126KIT e) NV-SD200AM/A/BA, NV-SD205AM/EU, NV-SD207EE, NV-SD250A/EA/BA The parts kit number is VUE4127KIT d) VUE4126KIT e) VUE4127KIT No. Ref. No. Parts No. No. Ref. No. Parts No. 1 IC1101 TDA4805-3 1 IC1101 TDA4805-3 2 Q1101 STP3N60F1-M 2 Q1101 STP3N60F1-M 3 Q1102 2SD601A 3 Q1102 2SD637 4 Q1105 2SD601A 4 Q1111 M0C8104FR2 5 Q1111 M0C8104FR2 5 QR1101 UN1114 6 QR1101 UN2114 6 D1104 MA178 7 D1104 MA178 7 D1126 MA4043-L 8 D1126 MA4043-L 8 D1127 MA165 9 D1127 1SS355 9 F1101 XBA2C16TBO 10 F1101 XBA2C16TBO 10 R1109 ERDS2FJ221 11 R1109 ERJ6GMYJ221 11 R1114 ERX12SJR75 12 R1114 ERX12SJR75 12 R1116 ERDS2FJ100 13 R1116 ERJ6GMYG100 13 R1117 ERDS2FJ472 14 R1117 ERJ6GMYG472 14 R1127 ERDS2FJ333 15 R1123 ERJ6GMZ0R00 15 R1128 ERDS2FJ332 16 R1127 ERJ6GMYG333 16 R1129 ERD62FJ223 17 R1128 ERJ6GMYG332 17 R1106 ERDS2FJ221 18 R1129 ERJ6GMYG223 18 R1118 ERG1SJ100 19 R1118 ERG1SJ100 R1118 is used for modification as T/1 No. VRD9610TC11. 3) Delivery Time From February 1997 Panasonic CS U.K. Document No: 03 Model: NV-SD200B 3 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] CHANGE OF CYLINDER UNIT SYMPTOM: Different cylinder unit fitted, this unit may be identified by the letter "U" on serial number label as shown below. NEW PARTS: DESCRIPTION OLD PART NO. NEW PART NO. Cylinder Unit VEG1198 VEG1360 Upper Cylinder VEH0707 VEH0832 Stator Unit - VEK7236 Rotor Unit - VXP1500 Cylinder Retainer - VDB1256 A supplement service manual may be ordered using part number .NV-SD200B/SUPP Panasonic CS U.K. Document No: 02 Model: NV-SD200B 2 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] COMMON FAULTS Applicable Models: SD260/SD410/SD400/HD600/HD605/HD610/HD650/HD660 Symptom: No stations found during auto search. Cause: C7708 and C7747 (leaky) Remedy: Replace C7708 (ECUM1H104ZFN) and C7747 (ECUM1H104ZFN). Applicable Models: SD260/SD410 Symptom: Playback colour OK (lines on top of picture). Record colour poor. Cause: C3043 leaky. Remedy: Replace C3043 (ECUM1H104ZFN). Applicable Models: SD260/SD410 Symptom: No colour recorded Cause: C3038 leaky. Remedy: Replace C3038 (ECUM1H104ZFN). Panasonic CS U.K. Document No: 02 Model: NV-SD200B 3 TechInfo Sheet fax: 01344 853689 Audio Visual email: [email protected] SOFTWARE UPGRADE SYMPTOMS: 1. Timer recording doesn't start, due to date being incorrectly set by the VCR. 2. After initial auto-setup is completed, BBC1 or BBC2 name is not stored on the list. 3. Playback of PDC recording does not have sound. REMEDY: Applicable serial numbers. Countermeasure for any of the above symptoms: From serial number F5B.....to G5B........., (i) Replace Timer IC (IC7701), Part No. M37507V4CJ and (ii) Replace OSD IC (IC7701), Part No. SD200OSDKIT From serial number H5B.......to A6B...... (i) Replace OSD IC (IC7701)* *Replacement IC7701 is supplied as a kit (SD200OSDKIT) consisting of 2 IC's, use only 1 IC. To identify which IC in the kit is needed, look at the model number label on the rear of the unit. (i) If there is a letter `E' after the model number (eg NV-SD200E) use IC M27C512MBPA (ii) If there is no letter `E' after the model number use ICM27C512MBQA Repair claim allowance:
