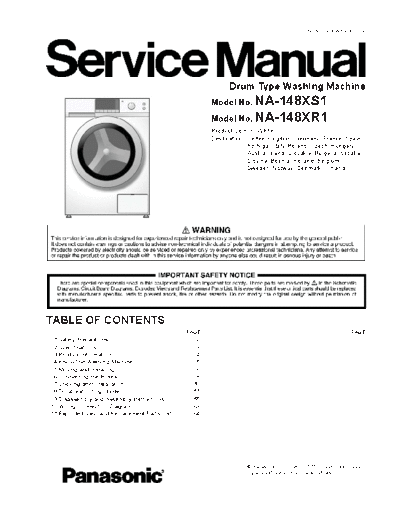

Image preview - the first page of the document
>> Download Panasonic_NA-148XS1_NA-148XR1_[X] documenatation <<Text preview - extract from the document Order No. GORW1503001CE
Drum Type Washing Machine
Model No. NA-148XS1
Model No. NA-148XR1
Product Colour : White
Destination : United Kingdom, Germany, France, Spain,
Portugal, Italy, Poland, Czech, Hungary,
Austlia, Irland, Slovakia, Bulgaria, Croatia,
Slovina, Bosnia, Holland, Belgium,
Sweden, Norway, Denmark, Finland
TABLE OF CONTENTS
PAGE PAGE
1 Safety Precautions----------------------------------------------- 2
2 Specifications ----------------------------------------------------- 3
3 Product Information --------------------------------------------- 4
4 Know The Washing Machine --------------------------------- 5
5 Moving and Installing ------------------------------------------- 6
6 Connecting the Hoses ------------------------------------------ 8
7 Cheking after Installation -------------------------------------10
8 Troubleshooting Guide ----------------------------------------51
9 Disassembly and Assembly Instructions ---------------55
10 Wiring Connection Diagram ---------------------------------63
11 Exploded View and Replacement Parts List -----------64
