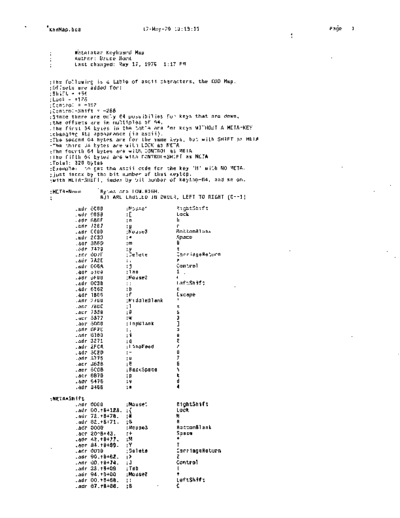

Image preview - the first page of the document
>> Download 19790517_KbdMap.bca documenatation <<
Text preview - extract from the document
tKbdMap.bca 17-May-79 13:18:11 Page 1
NoteTaker Keyboard Map
Author: Bruce Horn
Last changed: May 17, 1979 1:17 PM
;The following is a table of ascii characters, the KBD Map.
;Offsets are added for:
;Shift = +64
;Lock = +128
;Control = +192
;Control-Shift = +256
;Since there are only 64 possibilies for keys that are down,
;the offsets are in multiples of 64.
;The first 64 bytes in the table are for keys WITHOUT A META-KEY
;changing its appearance (in ascii).
;The second 64 bytes are for the same keys, but with SHIFT as META
;The third 64 bytes are with LOCK as META
;The fourth 64 bytes are with CONTROL as META
;The fifth 64 bytes are with CONTROL+SHIFT as META
;Total: 320 bytes
;Example: to get the ascii code for the key 'H' with NO META,
;just index by the bit number of that key top.
;with META=SHIFT, index by bit number of keytop+64, and so on.
;META=None Bytes are LOW.HIGH.
BUT ARE LABELED IN ORDER, LEFT TO RIGHT (0--1)
--'- nnnn .. u_ ...... _ .. D.:_ .... +C ..... ..:.~ ....
.aul vvvv tl"IUU~t:;.1. 1\ '!::J1I1..., .. tl"
.adr 0055 ;[ Lock
.adr 6S6E ;n h
.adr 7267 :g r
.adr 0000 ;Mouse3 BottomBlank.
.adr 2030 ; .. Space
.adr 3860 ;m 8
.adr 7479 ;y t
.adr OD7F ;Delete CarriageReturn
.adr 7A2E ,. z
.adr 006A ;j Control
.adr 3109 ;Tab i
.adr 5FOO ;Mouse2
..
~
.adr 0038 LeftShift
.adr 6362 ;b c
.adr lB66 ;f Escape
,
.adr 2700 ;MiddleBlank
.adr 786C :1 x
.adr 7339 ;9 s
.adr 3377 ;w 3
.adr 5000 :TopBlank ]
.adr 6F2C ,, 0
.adr 6169 ;i a
.adr 3271 :q 2
.adr 2FOA ;LineFeed I
.adr 3020 , 0
.adr 3775 ;u 7
.adr 3536 ;6 5
.adr 5C08 ;BackSpace \
.adr 6870 ;p k
.adr 6476 ;v d
.adr 3465 ;e 4
;META-Shift
.adr 0000 ;Mousel RightShift
.adr 00.1'8+123. ;{ Lock
.adr 72.1'8+78. ;N H
.adr 82.1'8+71. ;G R
.adr 0000 ;Mouse3 BottomBlank
.adr 201'8+43. ;+ Space
.adr 42.1'8+77. ;M ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
