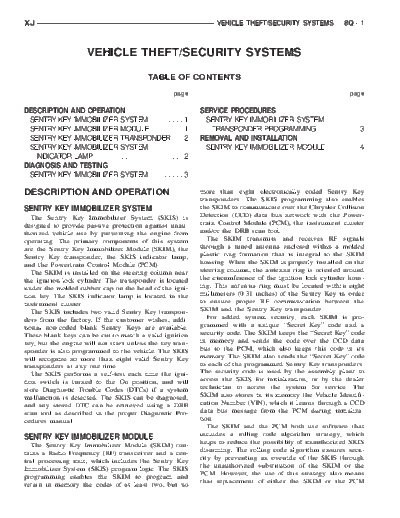

Image preview - the first page of the document
>> Download exj_8qa documenatation <<
Text preview - extract from the document
XJ VEHICLE THEFT/SECURITY SYSTEMS 8Q - 1
VEHICLE THEFT/SECURITY SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION SERVICE PROCEDURES
SENTRY KEY IMMOBILIZER SYSTEM . . . . . . . . . 1 SENTRY KEY IMMOBILIZER SYSTEM
SENTRY KEY IMMOBILIZER MODULE. . . . . . . . . 1 TRANSPONDER PROGRAMMING . . . . . . . . . . . 3
SENTRY KEY IMMOBILIZER TRANSPONDER . . . 2 REMOVAL AND INSTALLATION
SENTRY KEY IMMOBILIZER SYSTEM SENTRY KEY IMMOBILIZER MODULE. . . . . . . . . 4
INDICATOR LAMP . . . . . . . . . . . . . . . . . . . . . . . 2
DIAGNOSIS AND TESTING
SENTRY KEY IMMOBILIZER SYSTEM . . . . . . . . . 3
DESCRIPTION AND OPERATION more than eight electronically coded Sentry Key
transponders. The SKIS programming also enables
SENTRY KEY IMMOBILIZER SYSTEM the SKIM to communicate over the Chrysler Collision
The Sentry Key Immobilizer System (SKIS) is Detection (CCD) data bus network with the Power-
designed to provide passive protection against unau- train Control Module (PCM), the instrument cluster
thorized vehicle use by preventing the engine from and/or the DRB scan tool.
operating. The primary components of this system The SKIM transmits and receives RF signals
are the Sentry Key Immobilizer Module (SKIM), the through a tuned antenna enclosed within a molded
Sentry Key transponder, the SKIS indicator lamp, plastic ring formation that is integral to the SKIM
and the Powertrain Control Module (PCM). housing. When the SKIM is properly installed on the
The SKIM is installed on the steering column near steering column, the antenna ring is oriented around
the ignition lock cylinder. The transponder is located the circumference of the ignition lock cylinder hous-
under the molded rubber cap on the head of the igni- ing. This antenna ring must be located within eight
tion key. The SKIS indicator lamp is located in the millimeters (0.31 inches) of the Sentry Key in order
instrument cluster. to ensure proper RF communication between the
The SKIS includes two valid Sentry Key transpon- SKIM and the Sentry Key transponder.
ders from the factory. If the customer wishes, addi- For added system security, each SKIM is pro-
tional non-coded blank Sentry Keys are available. grammed with a unique "Secret Key" code and a
These blank keys can be cut to match a valid ignition security code. The SKIM keeps the "Secret Key" code
key, but the engine will not start unless the key tran- in memory and sends the code over the CCD data
sponder is also programmed to the vehicle. The SKIS bus to the PCM, which also keeps this code in its
will recognize no more than eight valid Sentry Key memory. The SKIM also sends the "Secret Key" code
transponders at any one time. to each of the programmed Sentry Key transponders.
The SKIS performs a self-test each time the igni- The security code is used by the assembly plant to
tion switch is turned to the On position, and will access the SKIS for initialization, or by the dealer
store Diagnostic Trouble Codes (DTCs) if a system technician to access the system for service. The
malfunction is detected. The SKIS can be diagnosed, SKIM also stores in its memory the Vehicle Identifi-
and any stored DTC can be retrieved using a DRB cation Number (VIN), which it learns through a CCD
scan tool as described in the proper Diagnostic Pro- data bus message from the PCM during initializa-
cedures manual. tion.
The SKIM and the PCM both use software that
SENTRY KEY IMMOBILIZER MODULE includes a rolling code algorithm strategy, which
The Sentry Key Immobilizer Module (SKIM) con- helps to reduce the possibility of unauthorized SKIS
tains a Radio Frequency (RF) transceiver and a cen- disarming. The rolling code algorithm ensures secu-
rity by preventing an override of the SKIS through
tral processing unit, which includes the Sentry Key
Immobilizer System (SKIS) program logic. The SKIS the unauthorized substitution of the SKIM or the
PCM. However, the use of this strategy also means
programming enables the SKIM to program and
that replacement of either the SKIM or the PCM
retain in memory the codes of at least two, but no
8Q - 2 VEHICLE THEFT/SECURITY SYSTEMS XJ
DESCRIPTION AND OPERATION (Continued)
units will require a system initialization procedure to
restore system operation.
When the ignition switch is turned to the On or
Start positions, the SKIM transmits an RF signal to
excite the Sentry Key transponder. The SKIM then
listens for a return RF signal from the transponder
of the Sentry Key that is inserted in the ignition lock
cylinder. If the SKIM receives an RF signal with
valid "Secret Key" and transponder identification
codes, the SKIM sends a "valid key" message to the
PCM over the CCD data bus. If the SKIM receives
an invalid RF signal or no response, it sends "invalid
key" messages to the PCM. The PCM will enable or
disable engine operation based upon the status of the
SKIM messages.
The SKIM also sends messages to the instrument
cluster over the CCD data bus network to control the
SKIS indicator lamp. The SKIM sends messages to Fig. 1 Sentry Key Immobilizer Transponder
