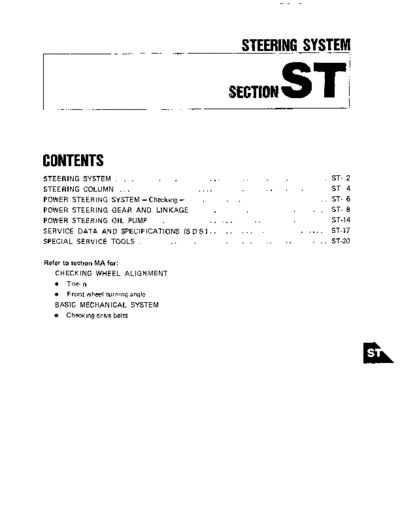

Image preview - the first page of the document

>> Download Steering documenatation <<

Text preview - extract from the document

I-
--
STEERING SYSTEM

SECTION ST
CONTENTS
STEERING SYSTEM . . . ... .. . ST- 2
STEERING COLUMN ... .... .. ST- 4
POWER STEERING SYSTEM -Checking - . . . .. ST- 6
POWER STEERING GEAR AND LINKAGE . . ST- 8
POWER STEERING OIL PUMP . .. ... .. ST-14
SERVICE DATA AND SPECIFICATIONS (SD S ) . . .. . .. . . .. .. ST-17
SPECIAL SERVICE TOOLS . .. . . .. . .. ST-20

Refer to section MA for:
CHECKING WHEEL ALIGNMENT
Toe-in
Front wheel turning angle
BASIC MECHANICAL SYSTEM
Checking drive belts
STEERING SYSTEM

a Fully turn steering wheel to the right and disconnect whole hydraulic line to steering gear ASSY. then remove steering gear
Whenever dirconnecitng hydraulic lines, cover openings to prevent foreign material from entering
a Be careful not to damage hydraulic line connection
a Do not reuse O-ring in hydraulic system.
a When conecting hydraulic line, apply a coat of oil (Automatic transmission fluid "Dexron Type") to O-rings
If disconnecting hydraulic line. always perform leak test and bleed air from line after filling it with oil
a After properly installing steering gear and linkage, check wheel alignment Refer to section MA

ST-2
STEERING SYSTEM

ST-3
STEERING COLUMN

Never in any case should undue stress be applied to steering column in axial direction
When installing, do not apply bending force t o steering column.
Be careful not to lose sliding plate
When the vehicle comes into light collision, check dimension "L", between steering column upper end
and jacket tube crashable area.
Column length "L" = 478.7 mm - 480.3 mm (18.85 - 18.91 in)
(Measure "L"at neutral position of steering column if equipped wlth tilt mechanism)
Check steering column for smooth rotation without binding and n o m If it does not rotate smoothly,
check as follows

Non-tilt Type Column

Steering lock
Removal Break self-shear type ITo column bearmgl
screws with B drdl or other
approprme too1

Lower bushing

Round surface Of
Steering column set

teermg column set

- 478 7 . a803 mrn
R 32-38
3.5 10.3.0 5, 2 2 - 3 61

N rn lkgm, ft-lbl
Grease-UP Wonts
@ DO notreuse SSTZOSA

ST-4
STEERING COLUMN
Tilt Type Column

(ql32-38
Steering lock
l3 -
24.281 g,+ Steering Removal Break relf-shear type
column clamp screwrwith a drill or other

Jacket upper tube

=(Inride of boots1

Bearing c
4
7
snap rtng--t
Rounded surface of snap
rmg facer toward bearing

p? N m (kg-m,ft-lbl ( 0 9 . 1 4 . 6 5 . 1 0 11
Grease UP points
a
v
DO not reuse SST206A

22-361

i
steenng column
1
- -
L = 478 7 480 3 mm I18 85 18 9 1 ml
S S T 20 8 A a t steermg column Neutral position

ST-5
POWER STEERING SYSTEM -Checking
Fluid Level Check Hydraulic System Check

Check t h e fluid level when the fluid IS cold. Before starting, check belt tension, driving pulley
Refer t o MA section and tire pressure. (Refer to MA section )
1 Set Tool Open shut off valve Then b l e d air
Power Steering Pump (See "Bleeding Hydraulic System" )
Belt Tension
ST27091000 lJ263571
Refer t o MA section

Fluid Leakage Check

1 Run engine a t idle speed or 1,000 rpm
Make sure temperature of fluid in tank rises to
60 t o 80
