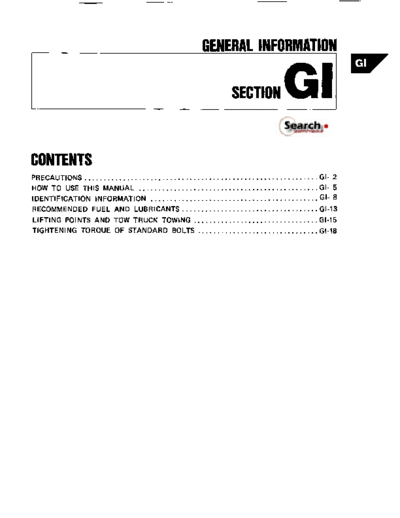

Image preview - the first page of the document

>> Download General Info documenatation <<

Text preview - extract from the document

EV
SECTION GI
CONTENTS
PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
HOW TO USE THIS MANUAL ............................................. .GI. 5
IDENTIFICATION INFORMATION ........................................... GI- 8
RECOMMENDED FUEL AND LUBRICANTS ................................... g1-13
LIFTING POINTS AND TOW TRUCK TOWING ............................... . G 1.15
TIGHTENING TORQUE OF STANDARD BOLTS ............................... GI-18
PRECAUTIONS

The following precautions should be observed to 3. When removing a heavy component such as the
ensure safe and proper service operations. These engine or transaxle/transmission, take care not
precautions are not described in each individual to lose your balance and drop it. Also do not
section. allow it to hit against adjacent parts, especially
1. Do not operate the engine for an extended the brake tube and brake master cylinder.
period of time without proper exhaust ventila- 4. Before starting repairs which do not require
tion. battery power, always turn off the ignition
Keep the work area well ventilated and free of switch, then disconnect the ground cable from
any inflammable materials. Special care should the battery to prevent accidental short circuit.
be taken when handling any inflammable or
poisonous materials, such as gasoline, refrige-
rant gas, etc. When working in a pit or other
enclosed area, be sure t o properly ventilate the

r
area before working with hazardous materials.
Do not smoke while working on the vehicle.

501285
5. To prevent serious burns, avoid contact with
hot metal parts such as the radiator, exhaust
2. Before jacking up the vehicle, apply wheel
manifold, tail pipe and muffler.
chocks or other tire blocks to the wheels to
prevent the vehicle from moving. After jacking
Do not remove the radiator cap when the
engine is hot.
up the vehicle, support the vehicle weight with
safety stands a t the points designated for 2
proper lifting before working on the vehicle. h K
V
These operations should be done on a level sur-
face.

6. To prevent scratches and soiling, protect fen-
ders, upholstery and carpeting with appropriate
covers before servicing.
Take caution that keys, buckles or buttons on
SG1231 your person do not scratch the paint.

GI-2
PRECAUTIONS
,- Precautions for a Catalyst -
If a large amount of unburned fuel flows into the
converter, the converter temperature will be
excessively high. To prevent this, follow the
procedure below.
1 . Use unleaded gasoline only. Leaded gasoline
will seriously damage the catalytic converter.
2. When checking for ignition spark or measuring
engine compression, make tests quickly and
only when necessary.
3. Do not run engine when the fuel tank level is
low, otherwise the engine may misfire causing
SG1234 damage to the converter.
4. Do not place the vehicle on inflammable
material. Keep inflammable material off the
7. Clean all disassembled parts in the designated exhaust pipe.
liquid or solvent prior t o inspection or assem-
bly.
8. Replace oil seals, gaskets, packings, O-rings,
locking washers, cotter pins, self-locking nuts,
etc. as instructed and discard used ones.
9. Tapered roller bearings and needle bearings
should be replaced as a set of inner and outer
races.
10. Arrange the disassembled parts in accordance
with their assembled locations and sequence.
11. Do not touch the terminals of electrical com-
ponents which utilize microcomputers such as Clean floor
SG1290
electronic control units. Static electrical
charges stored in your body may damage inter-
nal electronic components.
12. After disconnecting vacuum hose or air hose,
attach a tag which indicates the proper connec-
tion to prevent incorrect connection.
13. Use only the lubricants specified in the applica-
ble section or those indicated under "Recom-
mended Fuel and Lubricants".
14. Use approved bonding agents, sealants or their
equivalents when required.
15. The use of the proper tools and recommended
essential tools should be used where specified
for proper, safe and efficient service repairs.
16. When effecting repairs on the fuel, oil, water,
vacuum or exhaust systems, make certain to
check all affected lines for leaks.
17. Dispose of drained oil or the solvent used for
cleaning parts in an appropriate manner.

GI-3
PRECAUTIONS
Precautions for E.F.I. o-
r -Precautions for Turbocharger -
E.C.C.S. Engine
The turbocharger system uses engine oil for lubri-
cation and cooling o f i t s rotating components. The
1. Before connecting or disconnecting E.F.I. or
turbocharger turbine turns at a speed in excess of
E.C.C.S. harness connector to or from any
100,000 rpm a t full throttle and its temperature
E.F.I. or E.C.C.S. control unit, be sure to turn
can reach 870
