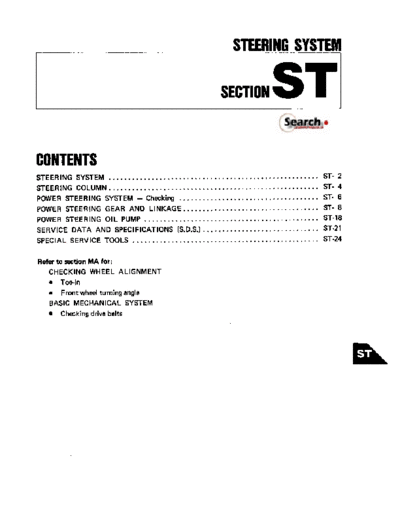

Image preview - the first page of the document

>> Download Steering documenatation <<

Text preview - extract from the document

I
STEERING SYSTEM

SECTION ST
CONTENTS
STEERING SYSTEM ...................................................... ST- 2
STEERING COLUMN ...................................................... ST- 4
POWER STEERING SYSTEM - Checking .................................... ST- 6
POWER STEERING GEAR AND LINKAGE ................................... ST- 8
POWER STEERING OIL PUMP ............................................. ST-18
SERVICE DATA AND SPECIFICATIONS (S.D.S.) .............................. ST-21
SPECIAL SERVICE TOOLS ................................................ ST-24

Refer to section MA for:
CHECKING WHEEL ALIGNMENT
0 Toe-in
0 Front wheel turning angle
BASIC MECHANICAL SYSTEM
Checking drive belts
STEERING SYSTEM

0 Fully turn steering wheel t o the right and disconnect whole hydraulic line to steering gear assembly, then remove steering
gear.
0 Whenever disconnecting hydraulic lines, cover openings to prevent foreign material from entering.
0 Be careful not to damage hydraulic line connection.
0. Do not reuse O-ring in hydraulic system.
0 When connecting hydraulic line, apply a m a t of automatic transmission fluid "Dexron Type" t o O-rings.
0 If disconnecting hydraulii line, always perform leak test and bleed air from line after filling it with oil.
0 After properly installing steering gear and linkage, check wheel alignment. Refer t o section MA.

ST-2
STEERING SYSTEM

.. .. ., ..
E@
:
SST0788

ST-3
STEERING COLUMN

Never in any case should undue stress be applied t o steering column in axial direction.
When installing, do not apply bending force t o steering column.
Be careful not t o lose sliding plate.
When the vehicle comes into light collision, check dimension "L", between steering column upper end
and jacket tube crashable area.
Column length "L" = 478.7 mm .480.3 mm (18.85 - 18.91 in)
(Measure "L" a t neutral position o steering column if equipped with tilt mechanism)
f
Check steering column for smooth rotation without binding and noise. If it does not rotate smoothly,
check as follows:

Non-tilt Type Column

Steering lock
Removal: Break self-shear type (To column bearing1
screws with a drill or other
appropriate tool.
7
Snap ring @
-
2 r Spring washer
-Warher

Snap ring
/' / Round surface of
map ring facer
Steering column sat toward bearing.

Column length "L"
Steering column et

h &A m24.29
-
12.4 3.0,
17.221

478.7 .480.3 mm

3 . 5 10.3.0.5,2.2 .3.61

SST207A

: N m Ikgm,ft-lb)
m:Grease-up points
@ : Do not reuse. SSTZOSA

ST-4
STEERING COLUMN
Tilt Type Column
Steering lock
Removal: Break %If-rhmr type
x r w s with a drill or other
appropriate tool.

Do notdims
Jsfket upper tube

11.6.2.1.12-161
: N m (kgrn, ft-lb)
m: Grease-uppoints
-
13.18 ( i d . 1 8 . 9 131

@ : Do not reuse.
-
10.3 0.6, 2.2.3.61 SST612A

Jumping UP
Tiit up

1
SST208A
I~

L - -
I
478.7 480.3 mm 118.85. 18.91 in)
at stemring column Neutral msitim

ST-5
POWER STEERING SYSTEM -Checking
Fluid Level Check Hydraulic System Check

Check the fluid level when the fluid is cold. Before starting, check belt tension, driving pulley
Refer t o MA section. and tire pressure. (Refer to MA section.)
1. Set Tool. Open shut off valve. Then bleed air.
Power Steering Pump (See "Bleeding Hydraulic System".)
Belt Tension
ST27091000 lJ263571
Refer to MA section.

Fluid Leakage Check

1. Run engine a t idle speed or 1,000 rpm.
Make sure temperature of fluid in tank rises t o
60 t o 80
