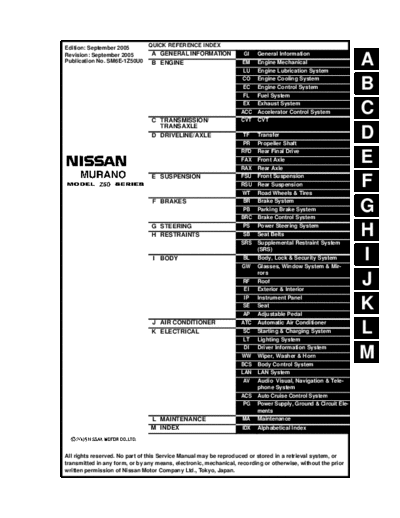

Image preview - the first page of the document
>> Download fwd documenatation <<
Text preview - extract from the document
Edition: September 2005 QUICK REFERENCE INDEX
A GENERAL INFORMATION GI General Information
Revision: September 2005
Publication No. SM6E-1Z50U0 B ENGINE EM
LU
Engine Mechanical
Engine Lubrication System
A
CO
EC
FL
Engine Cooling System
Engine Control System
Fuel System
B
C TRANSMISSION/
EX
ACC
CVT
Exhaust System
Accelerator Control System
CVT
C
TRANSAXLE
D DRIVELINE/AXLE TF
PR
Transfer
Propeller Shaft
D
RFD Rear Final Drive
FAX
RAX
Front Axle
Rear Axle
E
F
E SUSPENSION FSU Front Suspension
RSU Rear Suspension
WT Road Wheels & Tires
F BRAKES BR
PB
BRC
Brake System
Parking Brake System
Brake Control System
G
G STEERING
H RESTRAINTS
PS
SB
SRS
Power Steering System
Seat Belts
Supplemental Restraint System
H
I BODY BL
GW
(SRS)
Body, Lock & Security System
Glasses, Window System & Mir-
I
rors
RF
EI
Roof
Exterior & Interior
J
IP Instrument Panel
SE
AP
Seat
Adjustable Pedal
K
J AIR CONDITIONER ATC Automatic Air Conditioner
K ELECTRICAL SC
LT
Starting & Charging System
Lighting System
L
DI
WW
BCS
Driver Information System
Wiper, Washer & Horn
Body Control System
M
LAN LAN System
AV Audio Visual, Navigation & Tele-
phone System
ACS Auto Cruise Control System
PG Power Supply, Ground & Circuit Ele-
ments
L MAINTENANCE MA Maintenance
M INDEX IDX Alphabetical Index
All rights reserved. No part of this Service Manual may be reproduced or stored in a retrieval system, or
transmitted in any form, or by any means, electronic, mechanical, recording or otherwise, without the prior
written permission of Nissan Motor Company Ltd., Tokyo, Japan.
This manual contains maintenance and repair procedure for the 2006
NISSAN MURANO.
In order to assure your safety and the efficient functioning of the vehicle,
this manual should be read thoroughly. It is especially important that the
PRECAUTIONS in the GI section be completely understood before starting
any repair task.
All information in this manual is based on the latest product information
at the time of publication. The right is reserved to make changes in specifi-
cations and methods at any time without notice.
IMPORTANT SAFETY NOTICE
The proper performance of service is essential for both the safety of
the technician and the efficient functioning of the vehicle.
The service methods in this Service Manual are described in such a
manner that the service may be performed safely and accurately.
Service varies with the procedures used, the skills of the technician
and the tools and parts available. Accordingly, anyone using service
procedures, tools or parts which are not specifically recommended
by NISSAN must first be completely satisfied that neither personal
safety nor the vehicle's safety will be jeopardized by the service
method selected.
INCH TO METRIC CONVERSION TABLE METRIC TO INCH CONVERSION TABLE
(Rounded-off for automotive use) (Rounded-off for automotive use)
inches mm inches mm mm inches mm inches
.100 2.54 .610 15.49 1 .0394 51 2.008
.110 2.79 .620 15.75 2 .079 52 2.047
.120 3.05 .630 16.00 3 .118 53 2.087
.130 3.30 .640 16.26 4 .157 54 2.126
.140 3.56 .650 16.51 5 .197 55 2.165
.150 3.81 .660 16.76 6 .236 56 2.205
.160 4.06 .670 17.02 7 .276 57 2.244
.170 4.32 .680 17.27 8 .315 58 2.283
.180 4.57 .690 17.53 9 .354 59 2.323
.190 4.83 .700 17.78 10 .394 60 2.362
.200 5.08 .710 18.03 11 .433 61 2.402
.210 5.33 .720 18.29 12 .472 62 2.441
.220 5.59 .730 18.54 13 .512 63 2.480
.230 5.84 .740 18.80 14 .551 64 2.520
.240 6.10 .750 19.05 15 .591 65 2.559
.250 6.35 .760 19.30 16 .630 66 2.598
.260 6.60 .770 19.56 17 .669 67 2.638
.270 6.86 .780 19.81 18 .709 68 2.677
.280 7.11 .790 20.07 19 .748 69 2.717
.290 7.37 .800 20.32 20 .787 70 2.756
.300 7.62 .810 20.57 21 .827 71 2.795
.310 7.87 .820 20.83 22 .866 72 2.835
.320 8.13 .830 21.08 23 .906 73 2.874
.330 8.38 .840 21.34 24 .945 74 2.913
.340 8.64 .850 21.59 25 .984 75 2.953
.350 8.89 .860 21.84 26 1.024 76 2.992
.360 9.14 .870 22.10 27 1.063 77 3.031
.370 9.40 .880 22.35 28 1.102 78 3.071
.380 9.65 .890 22.61 29 1.142 79 3.110
.390 9.91 .900 22.86 30 1.181 80 3.150
.400 10.16 .910 23.11 31 1.220 81 3.189
.410 10.41 .920 23.37 32 1.260 82 3.228
.420 10.67 .930 23.62 33 1.299 83 3.268
.430 10.92 .940 23.88 34 1.339 84 3.307
.440 11.18 .950 24.13 35 1.378 85 3.346
.450 11.43 .960 24.38 36 1.417 86 3.386
.460 11.68 .970 24.64 37 1.457 87 3.425
.470 11.94 .980 24.89 38 1.496 88 3.465
.480 12.19 .990 25.15 39 1.535 89 3.504
.490 12.45 1.000 25.40 40 1.575 90 3.543
.500 12.70 2.000 50.80 41 1.614 91 3.583
.510 12.95 3.000 76.20 42 1.654 92 3.622
.520 13.21 4.000 101.60 43 1.693 93 3.661
.530 13.46 5.000 127.00 44 1.732 94 3.701
.540 13.72 6.000 152.40 45 1.772 95 3.740
.550 13.97 7.000 177.80 46 1.811 96 3.780
.560 14.22 8.000 203.20 47 1.850 97 3.819
.570 14.48 9.000 228.60 48 1.890 98 3.858
.580 14.73 10.000 254.00 49 1.929 99 3.898
.590 14.99 20.000 508.00 50 1.969 100 3.937
.600 15.24
QUICK REFERENCE CHART MURANO 2006
QUICK REFERENCE CHART MURANO PFP:00000
ENGINE TUNE-UP DATA (VQ35DE) ELS0003W
Engine model VQ35DE
Firing order 1-2-3-4-5-6
Idle speed rpm
650 ◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
