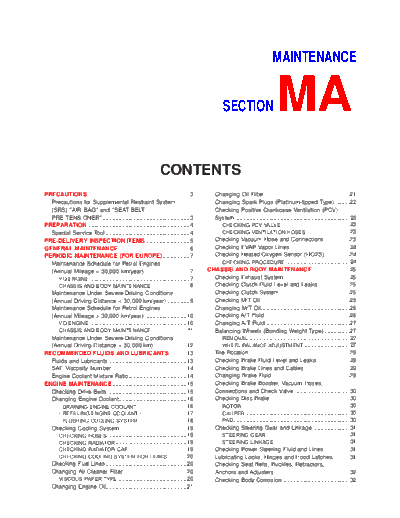

Image preview - the first page of the document
>> Download ma documenatation <<Text preview - extract from the document MAINTENANCE
SECTION MA
CONTENTS
PRECAUTIONS ...............................................................3 Changing Oil Filter.....................................................21
Precautions for Supplemental Restraint System Changing Spark Plugs (Platinum-tipped Type) .........22
(SRS) AIR BAG and SEAT BELT Checking Positive Crankcase Ventilation (PCV)
PRE-TENSIONER ......................................................3 System .......................................................................23
PREPARATION ...............................................................4 CHECKING PCV VALVE...........................................23
Special Service Tool ....................................................4 CHECKING VENTILATION HOSES ...........................23
PRE-DELIVERY INSPECTION ITEMS............................5 Checking Vacuum Hose and Connections................23
GENERAL MAINTENANCE ............................................6 Checking EVAP Vapor Lines .....................................24
PERIODIC MAINTENANCE (FOR EUROPE).................7 Checking Heated Oxygen Sensor (HO2S)................24
Maintenance Schedule for Petrol Engines CHECKING PROCEDURE ........................................24
(Annual Mileage < 30,000 km/year) ............................7 CHASSIS AND BODY MAINTENANCE .......................25
VQ ENGINE ..............................................................7 Checking Exhaust System.........................................25
CHASSIS AND BODY MAINTENANCE ........................8 Checking Clutch Fluid Level and Leaks....................25
Maintenance Under Severe Driving Conditions Checking Clutch System ...........................................25
(Annual Driving Distance < 30,000 km/year) ..............9 Checking M/T Oil .......................................................25
Maintenance Schedule for Petrol Engines Changing M/T Oil.......................................................26
(Annual Mileage > 30,000 km/year) ..........................10 Checking A/T Fluid ....................................................26
VQ ENGINE ............................................................10 Changing A/T Fluid ....................................................27
CHASSIS AND BODY MAINTENANCE ......................11 Balancing Wheels (Bonding Weight Type) ................27
Maintenance Under Severe Driving Conditions REMOVAL ...............................................................27
(Annual Driving Distance > 30,000 km) ....................12 WHEEL BALANCE ADJUSTMENT ............................27
RECOMMENDED FLUIDS AND LUBRICANTS...........13 Tire Rotation ..............................................................29
Fluids and Lubricants ................................................13 Checking Brake Fluid Level and Leaks.....................29
SAE Viscosity Number ..............................................14 Checking Brake Lines and Cables ............................29
Engine Coolant Mixture Ratio....................................14 Changing Brake Fluid ................................................29
ENGINE MAINTENANCE ..............................................15 Checking Brake Booster, Vacuum Hoses,
Checking Drive Belts .................................................15 Connections and Check Valve ..................................30
Changing Engine Coolant..........................................16 Checking Disc Brake .................................................30
- DRAINING ENGINE COOLANT - ............................16 ROTOR ...................................................................30
- REFILLING ENGINE COOLANT - ...........................17 CALIPER .................................................................30
- FLUSHING COOLING SYSTEM -............................18 PAD ........................................................................30
Checking Cooling System .........................................19 Checking Steering Gear and Linkage .......................31
CHECKING HOSES .................................................19 STEERING GEAR ....................................................31
CHECKING RADIATOR ............................................19 STEERING LINKAGE ...............................................31
CHECKING RADIATOR CAP ....................................19 Checking Power Steering Fluid and Lines ................31
CHECKING COOLING SYSTEM FOR LEAKS ............20 Lubricating Locks, Hinges and Hood Latches...........31
Checking Fuel Lines ..................................................20 Checking Seat Belts, Buckles, Retractors,
Changing Air Cleaner Filter .......................................20 Anchors and Adjusters...............................................32
VISCOUS PAPER TYPE ...........................................20 Checking Body Corrosion..........................................32
Changing Engine Oil..................................................21
CONTENTS (Cont'd)
SERVICE DATA AND SPECIFICATIONS (SDS) .........33 SPARK PLUG (PLATINUM-TIPPED TYPE) ................33
Engine Maintenance ..................................................33 Chassis and Body Maintenance................................33
BELT DEFLECTION AND TENSION ..........................33 WHEEL BALANCE ...................................................33
MA-2
PRECAUTIONS
Precautions for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Precautions for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER" NFMA0001
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL A33 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring
harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
MA-3
PREPARATION
Special Service Tool
Special Service Tool NFMA0002
Tool number
Description
Tool name
KV10115801 Removing oil filter
KV10115800
(Kent-Moore Europe
make)
Oil filter wrench
NT362
MA-4
NFMA0036
PRE-DELIVERY INSPECTION ITEMS
Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD -- engine off
Radiator coolant level and coolant hose connections for leaks
Battery fluid level, specific gravity and conditions of battery terminals
Drive belts tension
Fuel filter for water or dusts, and fuel lines and connections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid lines for leaks
Windshield and rear window washer and headlamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for operation
All moldings, trims and fittings for fit and alignment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and alignment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if applicable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If applicable)
Install deodorizing filter to air conditioner (If applicable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for leaks
Tighten bolts and nuts of steering linkage and gear box, suspension, propeller shafts and drive shafts
Tighten rear body bolts and nuts (Models with wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing and kickdown
Steering control and returnability
Engine performance
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle speed
Automatic transmission/transaxle fluid level
Engine idling and stop knob operation (Diesel only)
FINAL INSPECTION
Install necessary parts (outside mirror, wheel covers, seat belts, mat, carpet or mud flaps)
Inspect for interior and exterior metal and paint damage
Check for spare tire, jack, tools (wheel chock), and literature
Wash, clean interior and exterior
: Not applicable to this model
MA-5
NFMA0004
GENERAL MAINTENANCE
General maintenance includes those items which should be checked during the normal day-to-day operation
of the vehicle. They are essential if the vehicle is to continue operating properly. The owners can perform the
checks and inspections themselves or they can have their NISSAN dealers do them for a nominal charge.
OUTSIDE THE VEHICLE
The maintenance items listed here should be performed from time to time, unless otherwise specified.
Item Reference page
Tires Check the pressure with a gauge periodically when at a service station,
including the spare, and adjust to the specified pressure if necessary. Check --
carefully for damage, cuts or excessive wear.
Windshield wiper
Check for cracks or wear if they do not wipe properly. --
blades
Doors and engine Check that all doors, the engine hood, the trunk lid and back door operate
hood properly. Also ensure that all latches lock securely. Lubricate if necessary.
Make sure that the secondary latch keeps the hood from opening when the
MA-31
primary latch is released.
When driving in areas using road salt or other corrosive materials, check for
lubrication frequently.
Tire rotation Tires should be rotated every 10,000 km (6,000 miles). MA-29
INSIDE THE VEHICLE
The maintenance items listed here should be checked on a regular basis, such as when performing periodic maintenance, cleaning the
vehicle, etc.
Item Reference page
Lamps Make sure that the headlamps, stop lamps, tail lamps, turn signal lamps,
and other lamps are all operating properly and installed securely. Also check --
headlamp aim.
Warning lamps and
Make sure that all warning lamps and chimes are operating properly. --
chimes
Steering wheel Check for change in the steering conditions, such as excessive free play,
hard steering or strange noises. --
Free play: Less than 35 mm (1.38 in)
Seat belts Check that all parts of the seat belt system (e.g. buckles, anchors, adjusters
and retractors) operate properly and smoothly, and are installed securely. MA-32
Check the belt webbing for cuts, fraying, wear or damage.
UNDER THE HOOD AND VEHICLE
The maintenance items listed here should be checked periodically e.g. each time you check the engine oil or refuel.
Item Reference page
Windshield washer
Check that there is adequate fluid in the tank. --
fluid
Engine coolant level Check the coolant level when the engine is cold. MA-17
Engine oil level Check the level after parking the vehicle on a level spot and turning off the
MA-21
engine.
Brake and clutch Make sure that the brake and clutch fluid levels are between the "MAX" and
MA-25, 29
fluid levels "MIN" lines on the reservoir.
Battery Check the fluid level in each cell. It should be between the "MAX" and "MIN"
--
lines.
MA-6
NFMA0043
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Petrol Engines (Annual Mileage < 30,000 km/year)
The following tables show the normal maintenance schedule. Depending upon weather and atmospheric
conditions, varying road surfaces, individual driving habits and vehicle usage, additional or more frequent
maintenance may be required.
Periodic maintenance beyond the last period shown on the tables requires similar maintenance.
Maintenance Schedule for Petrol Engines
(Annual Mileage < 30,000 km/year) NFMA0043S01
VQ ENGINE NFMA0043S0101
Abbreviations: R = Replace, I = Inspect: Correct or replace if necessary, E = Check and correct the engine coolant mixture ratio,
[ ] = At the specified mileage only
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Refer-
Perform on a kilometer basis, but on km x 1,000 15 30 45 60 75 90 105 120 ence
an annual basis when driving less than (miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72) pages
15,000 km (9,000 miles) per year Months 12 24 36 48 60 72 84 96
Engine compartment and under vehicle
Engine oil (Use recommended oil)5 R R R R R R R R MA-21
Engine oil filter (Use NISSAN genuine
R R R R R R R R MA-21
part or equivalent)5
Drive belts I I I I I I I I MA-15
Cooling system I I I I I I I I MA-19
Engine anti-freeze coolant (Use genu-
ine NISSAN Anti-Freeze Coolant (L2N) See NOTE (1) E MA-16
or equivalent)
Air cleaner filter5 R R MA-20
Intake and exhaust valve clearance See NOTE (2) EM-51
MA-20/
Fuel and EVAP vapour lines I I I I
MA-24
Spark plugs Platinum-tipped type [R] MA-22
Fuel filter See NOTE (3)
Heated oxygen sensor (Exhaust gas
See NOTE (4) MA-24
sensor)5
NOTE:
(1) First replace at 100,000 km (60,000 miles)/60 months, then every 60,000 km (36,000 miles)/48 months.
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(3) Maintenance-free item. For service procedures, refer to FE section.
(4) Perform only according to "Maintenance Under Severe Driving Conditions" for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
5 Maintenance items with "5" should be performed more frequently according to "Maintenance Under Severe Driving Con-
ditions".
MA-7
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Petrol Engines (Annual Mileage < 30,000 km/year) (Cont'd)
CHASSIS AND BODY MAINTENANCE =NFMA0043S0102
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Refer-
Perform on a kilometer basis, but on km x 1,000 15 30 45 60 75 90 105 120 ence
an annual basis when driving less than (miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72) pages
15,000 km (9,000 miles) in a year. Months 12 24 36 48 60 72 84 96
Underhood and under vehicle
EL-67
Headlamp aiming I I I I I I I I
Wheel alignment (if necessary, balance SU-6/
I I I I I I I I
& rotate wheels) MA-27
Brake pads, rotors & other brake com-
I I I I I I I I MA-30
ponents5
BR-12/
Foot brake, parking brake & clutch (for
I I I I I I I I BR-39
free play, stroke & operation)
Brake booster vacuum hoses,
I I I I MA-30
connections, check valve
Brake & clutch, systems and fluid (for MA-25/
I I I I I I I I
level and leaks) MA-29
BR-7,
Brake fluid5 R R R R
MA-29
Power steering fluid and lines (for level
I I I I I I I I MA-31
and leaks)
ASCD vacuum hoses I I I I I I I I EL-237
Supplemental air bag system See NOTE (1) RS-14
HA-123
Ventilation air filter5 R R R R
Manual transaxle gear oil (check for
I I I I I I I I MA-25
leakage).
Automatic transaxle fluid (for level and
I I I I I I I I MA-26
leaks)5
MA-25/
Steering gear & linkage, axle & sus-
SU-6/
pension parts, drive shafts, exhaust I I I I
SU-20/
system5
MA-31
Body corrosion See NOTE (2) MA-32
NOTE:
(1) Inspect at the first 10 years, and then every 2 years.
(2) Inspect once per year.
5 Maintenance items with "5" should be performed more frequently according to "Maintenance Under Severe Driving Con-
ditions".
MA-8
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Under Severe Driving Conditions (Annual Driving Distance < 30,000 km/year)
Maintenance Under Severe Driving Conditions
(Annual Driving Distance < 30,000 km/year) =NFMA0043S03
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
A -- Driving under dusty conditions
B -- Driving repeatedly short distances
C -- Towing a trailer or caravan
D -- Extensive idling
E -- Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F -- Driving in high humidity areas or in mountainous areas
G -- Driving in areas using salt or other corrosive materials
H -- Driving on rough and/or muddy roads or in the desert
I -- Driving with frequent use of braking or in mountainous areas
J -- Frequent off road use or driving in water
K -- Sustained high speed driving
L -- For models without Euro-OBD system
Maintenance
Driving condition Maintenance interval
operation
Engine oil & engine oil filter
A B C D . . . . . . . . Every 7,500 km (4,500 miles) or 6
Replace
months
Air cleaner filter
A . . . . . . . . . . . Every 30,000 km (18,000 miles) or
Replace
24 months
Front Heated Oxygen Sensor
. . . . . . . . . . . L Every 30,000 km (18,000 miles) or
Inspect
24 months
Rear Heated Oxygen Sensor
. . . . . . . . . . . L Every 30,000 km (18,000 miles) or
Inspect
24 months
Ventilation air filter
A . . . . . . . . . . . Every 15,000 km (9,000 miles) or 12
Replace
months
Brake fluid
. . . . . F . . . . . . Every 15,000 km (9,000 miles) or 6
Replace
months
Automatic transaxle fluid
. . C . . . . H . . . . Every 30,000 km (18,000 miles) or
Replace
24 months
Brake pads, rotors & other brake system compo-
nents
A . C . . . G H I . . .
Every 7,500 km (4,500 miles) or 6
Inspect
months
Steering gear & linkage, axle & suspension parts,
drive shafts, exhaust system
. . . . . . G H . . . .
Every 15,000 km (9,000 miles) or 12
Inspect
months
MA-9
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Petrol Engines (Annual Mileage > 30,000 km/year)
Maintenance Schedule for Petrol Engines
(Annual Mileage > 30,000 km/year) =NFMA0043S04
VQ ENGINE NFMA0043S0401
Abbreviations: R = Replace, I = Inspect: Correct or replace if necessary, E = Check and correct the engine coolant mixture ratio
MAINTENANCE OPERATION MAINTENANCE INTERVAL Refer-
km x 1,000 15 30 45 60 75 90 105 120 ence
Perform on a kilometer basis only. pages
(miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Engine compartment and under vehicle
Engine oil (Use recommended oil)5 R R R R R R R R MA-21
Engine oil filter (Use NISSAN genuine
R R R R R R R R MA-21
part or equivalent)5
Drive belts I I I I I I I I MA-15
Cooling system I I I I MA-19
Engine anti-freeze coolant (Use genu-
ine NISSAN Anti-Freeze Coolant (L2N) See NOTE (1) E MA-16
or equivalent)
Air cleaner filter5 R R MA-20
Intake & exhaust valve clearance See NOTE (2) EM-52
MA-20/
Fuel and EVAP vapor lines I I
MA-24
Spark plugs Platinum-tipped type R MA-22
Fuel filter See NOTE (3) R
Heated oxygen sensor (Exhaust gas
See NOTE (4) MA-24
sensor)5
NOTE:
(1) First replace at 100,000 km (60,000 miles), then every 60,000 km (36,000 miles).
(2) Periodic maintenance is not required. However, if valve noise increases, check valve clearance.
(3) Maintenance-free item. For service procedures, refer to FE section.
(4) Perform only according to "Maintenance Under Severe Driving Conditions" for models without Euro-OBD system. For
models with Euro-OBD system, periodic maintenance is not required.
5 Maintenance items with "5" should be performed more frequently according to "Maintenance Under Severe Driving Con-
ditions".
MA-10
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Schedule for Petrol Engines (Annual Mileage > 30,000 km/year) (Cont'd)
CHASSIS AND BODY MAINTENANCE =NFMA0043S0402
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary
MAINTENANCE OPERATION MAINTENANCE INTERVAL Refer-
km x 1,000 15 30 45 60 75 90 105 120 ence
Perform on a kilometer basis only. pages
(miles x 1,000) (9) (18) (27) (36) (45) (54) (63) (72)
Underhood and under vehicle
EL-67
Headlamp aiming I I I I
Wheel alignment (if necessary, balance SU-6/
I I I I
& rotate wheels) MA-27
Brake pads, rotors & other brake com-
I I I I MA-30
ponents5
BR-12/
Foot brake, parking brake & clutch (for
I I I I BR-39/
free play, stroke & operation)
Brake booster vacuum hoses,
I I MA-30
connections, check valve
Brake & clutch, systems and fluid (for MA-25/
I I I I
level and leaks) MA-29
BR-7,
Brake fluid5 R R
MA-29
Power steering fluid and lines (for level
I I I I MA-31
and leaks)
ASCD vacuum hoses I I I I EL-237
Supplemental air bag system See NOTE (1) RS-14
HA-123
Ventilation air filter5 R R R R
Manual transaxle gear oil (check for
I I I I MA-25
leakage).
Automatic transaxle fluid (for level and
I I I I MA-26
leaks)5
MA-25/
Steering gear and linkage, axle & sus-
SU-6/
pension parts, drive shafts, exhaust I I
SU-20/
system5
MA-31
Body corrosion See NOTE (2) MA-32
NOTE:
(1) Inspect at the first 10 years, and then every 2 years.
(2) Inspect once per year.
5 Maintenance items with "5" should be performed more frequently according to "Maintenance Under Severe Driving Con-
ditions".
MA-11
PERIODIC MAINTENANCE (FOR EUROPE)
Maintenance Under Severe Driving Conditions (Annual Driving Distance > 30,000 km)
Maintenance Under Severe Driving Conditions
(Annual Driving Distance > 30,000 km) =NFMA0043S06
The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle
is mainly operated under severe driving conditions as shown below, more frequent maintenance must be per-
formed on the following items as shown in the table.
A -- Driving under dusty conditions
B -- Driving repeatedly short distances
C -- Towing a trailer or caravan
D -- Extensive idling
E -- Driving in extremely adverse weather conditions or in areas where ambient temperatures are either
extremely low or extremely high
F -- Driving in high humidity areas or in mountainous areas
G -- Driving in areas using salt or other corrosive materials
H -- Driving on rough and/or muddy roads or in the desert
I -- Driving with frequent use of braking or in mountainous areas
J -- Frequent off road use or driving in water
K -- Sustained high speed driving
L -- For models without Euro-OBD system
Maintenance
Driving condition Maintenance interval
operation
Engine oil & engine oil filter
A B C D . . . . . . . .
Replace Every 7,500 km (4,500 miles)
Air cleaner filter
A . . . . . . . . . . .
Replace Every 30,000 km (18,000 miles)
Front Heated Oxygen Sensor
. . . . . . . . . . . L
Inspect Every 60,000 km (36,000 miles)
Rear Heated Oxygen Sensor
. . . . . . . . . . . L
Inspect Every 60,000 km (36,000 miles)
Ventilation air filter
A . . . . . . . . . . .
Replace Every 15,000 km (9,000 miles)
Brake fluid
. . . . . F . . . . . .
Replace Every 30,000 km (18,000 miles)
Automatic transaxle fluid
. . C . . . . H . . . .
Replace Every 60,000 km (36,000 miles)
Brake pads, rotors & other brake system compo-
A . C . . . G H I . . . nents
Inspect Every 15,000 km (9,000 miles)
Steering gear & linkage, axle & suspension parts,
. . . . . . G H . . . . drive shafts, exhaust system
Inspect Every 30,000 km (18,000 miles)
MA-12
NFMA0006
RECOMMENDED FLUIDS AND LUBRICANTS
Fluids and Lubricants
Fluids and Lubricants NFMA0006S01
Capacity (Approximate)
Recommended fluids and lubricants
Liter Imp qt
Engine oil With oil filter 4.0 3-1/2 qt API SG, SH or SJ*1 for Europe
(Refill) Without oil filter 3.7 3-1/4 qt ILSAC grade GF-I or GF-II*1
LHD 8.5 7-1/2 qt
VQ20
With reser- RHD 8.2 7-1/4 qt
Cooling For Europe Genuine Nissan anti-freeze coolant
voir tank LHD 7.7 6-3/4 qt
system VQ30 (L2N) or equivalent for Europe*3
RHD 7.4 6-1/2 qt
Reservoir 0.7 (5/8)
7-3/4 -
Manual RS5F50A 4.5 - 4.8 7-7/8 -
Oil level L mm (in) API GL-4*1
transaxle 8-1/2 pt*4
16 - 25 (0.63 - 0.98) Viscosity SAE 75W-90
gear oil
RS5F50V 4.25 - 4.55 3-3/4 - 4 qt
Automatic
Genuine Nissan ATF or equiva-
transaxle RE4F04B/W 9.4 8-1/4 qt
lent*2
fluid
Power steering fluid -- -- Type DexronTMIII or equivalent
DOT 3 or DOT 4 (US FMVSS No.
Brake and clutch fluid -- --
116)*4
Multi-purpose grease -- -- NLGI No. 2 (Lithium soap base)
*1: For further details, see "SAE Viscosity Number".
*2: Contact a Nissan dealership for more information regarding suitable fluids, including recommended brand(s) of DexronTMIII/MerconTM
Automatic Transmission Fluid.
*3: Use Genuine Nissan anti-freeze coolant, or equivalent in its quality, in order to avoid possible aluminum corrosion within the engine
cooling system caused by the use of non-genuine engine coolant.
Note that any repairs for the incidents within the engine cooling system while using non-genuine engine coolant may not be
covered by the warranty even if such incidents occurred during the warranty period.
*4: Never mix different types of fluids (DOT 3 and DOT 4).
MA-13
RECOMMENDED FLUIDS AND LUBRICANTS
SAE Viscosity Number
SAE Viscosity Number =NFMA0006S02
+ For warm and cold areas: 10W-30 is preferable for ambient
temperature above -20
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
