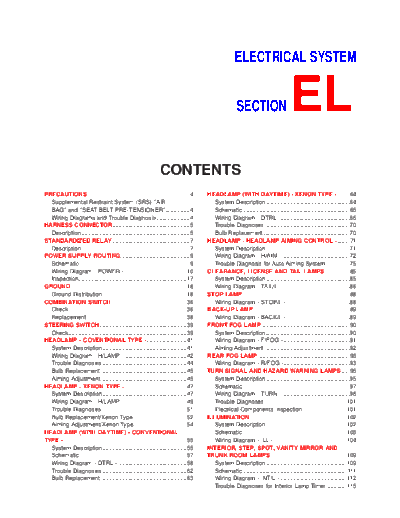

Image preview - the first page of the document
>> Download el documenatation <<Text preview - extract from the document ELECTRICAL SYSTEM
SECTION EL
CONTENTS
PRECAUTIONS ...............................................................4 HEADLAMP (WITH DAYTIME) - XENON TYPE -........64
Supplemental Restraint System (SRS) AIR System Description....................................................64
BAG and SEAT BELT PRE-TENSIONER...............4 Schematic ..................................................................65
Wiring Diagrams and Trouble Diagnosis.....................4 Wiring Diagram - DTRL -...........................................66
HARNESS CONNECTOR................................................5 Trouble Diagnoses.....................................................70
Description ...................................................................5 Bulb Replacement .....................................................70
STANDARDIZED RELAY................................................7 HEADLAMP - HEADLAMP AIMING CONTROL -........71
Description ...................................................................7 System Description....................................................71
POWER SUPPLY ROUTING...........................................9 Wiring Diagram - H/AIM - ..........................................72
Schematic ....................................................................9 Trouble Diagnosis for Auto Aiming System ...............75
Wiring Diagram - POWER - ......................................10 CLEARANCE, LICENSE AND TAIL LAMPS ...............85
Inspection...................................................................17 System Description....................................................85
GROUND........................................................................18 Wiring Diagram - TAIL/L -..........................................86
Ground Distribution....................................................18 STOP LAMP ..................................................................88
COMBINATION SWITCH ..............................................36 Wiring Diagram - STOP/L - .......................................88
Check.........................................................................36 BACK-UP LAMP............................................................89
Replacement..............................................................38 Wiring Diagram - BACK/L - .......................................89
STEERING SWITCH......................................................39 FRONT FOG LAMP.......................................................90
Check.........................................................................39 System Description....................................................90
HEADLAMP - COVENTIONAL TYPE -.........................41 Wiring Diagram - F/FOG - .........................................91
System Description....................................................41 Aiming Adjustment .....................................................92
Wiring Diagram - H/LAMP -.......................................42 REAR FOG LAMP .........................................................93
Trouble Diagnoses.....................................................44 Wiring Diagram - R/FOG -.........................................93
Bulb Replacement .....................................................45 TURN SIGNAL AND HAZARD WARNING LAMPS .....95
Aiming Adjustment .....................................................45 System Description....................................................95
HEADLAMP - XENON TYPE - ......................................47 Schematic ..................................................................97
System Description....................................................47 Wiring Diagram - TURN - ..........................................98
Wiring Diagram - H/LAMP -.......................................49 Trouble Diagnoses...................................................101
Trouble Diagnoses.....................................................51 Electrical Components Inspection ...........................101
Bulb Replacement/Xenon Type .................................52 ILLUMINATION............................................................102
Aiming Adjustment/Xenon Type.................................54 System Description..................................................102
HEADLAMP (WITH DAYTIME) - CONVENTIONAL Schematic ................................................................103
TYPE - ............................................................................55 Wiring Diagram - ILL - .............................................104
System Description....................................................55 INTERIOR, STEP, SPOT, VANITY MIRROR AND
Schematic ..................................................................57 TRUNK ROOM LAMPS ...............................................109
Wiring Diagram - DTRL -...........................................58 System Description..................................................109
Trouble Diagnoses.....................................................62 Schematic ................................................................ 111
Bulb Replacement .....................................................63 Wiring Diagram - INT/L - .........................................112
Trouble Diagnoses for Interior Lamp Timer.............115
CONTENTS (Cont'd)
METERS AND GAUGES.............................................123 Filament Check........................................................181
Component Parts and Harness Connector Filament Repair .......................................................182
Location ...................................................................123 AUDIO ..........................................................................183
System Description..................................................123 System Description..................................................183
Combination Meter ..................................................125 Schematic ................................................................185
Schematic ................................................................128 Wiring Diagram - AUDIO -.......................................187
Wiring Diagram - METER - .....................................130 Trouble Diagnoses...................................................195
Meter/Gauge Operation and Odo/Trip Meter Inspection.................................................................196
Segment Check in Diagnosis Mode ........................131 Wiring Diagram - REMOTE -...................................197
Trouble Diagnoses...................................................132 AUDIO ANTENNA .......................................................198
Electrical Components Inspection ...........................138 System Description..................................................198
BOARD COMPUTER...................................................139 Wiring Diagram - W/ANT - ......................................199
System Description..................................................139 Location of Antenna.................................................200
Wiring Diagram - B/COMP -....................................141 Window Antenna Repair ..........................................200
Trouble Diagnoses...................................................143 POWER SUNROOF.....................................................202
Electrical Components Inspection ...........................144 Wiring Diagram - SROOF - .....................................202
WARNING LAMPS ......................................................145 DOOR MIRROR ...........................................................204
Schematic ................................................................145 Wiring Diagram - MIRROR - ...................................204
Wiring Diagram - WARN - .......................................146 AUTO ANTI-DAZZLING INSIDE MIRROR .................206
Electrical Components Inspection ...........................150 Wiring Diagram - I/MIRR -.......................................206
A/T INDICATOR...........................................................151 TRUNK LID AND FUEL FILLER LID OPENER .........207
Wiring Diagram - AT/IND -.......................................151 Wiring Diagram - T&FLID -......................................207
WARNING CHIME .......................................................153 POWER SEAT .............................................................209
Component Parts and Harness Connector Schematic ................................................................209
Location ...................................................................153 Wiring Diagram - SEAT - .........................................210
System Description..................................................153 HEATED SEAT ............................................................213
Wiring Diagram - CHIME - ......................................155 Wiring Diagram - HSEAT - ......................................213
Trouble Diagnoses...................................................157 TELEPHONE (PRE WIRE) ..........................................214
FRONT WIPER AND WASHER ..................................163 Wiring Diagram - H/PHON - ....................................214
System Description..................................................163 AUTOMATIC SPEED CONTROL DEVICE (ASCD) ...216
Wiring Diagram - WIPER - ......................................165 Component Parts and Harness Connector
Removal and Installation .........................................166 Location ...................................................................216
Washer Nozzle Adjustment .....................................167 System Description..................................................217
Washer Tube Layout ...............................................167 Schematic ................................................................219
HEADLAMP WASHER ................................................168 Wiring Diagram - ASCD - ........................................220
System Description..................................................168 Fail-safe System ......................................................224
Wiring Diagram - HLC -...........................................169 CONSULT-II Inspection Procedure..........................224
Trouble Diagnoses...................................................170 CONSULT-II Self-diagnostic Results .......................225
Washer Tube Layout ...............................................170 CONSULT-II Data Monitor .......................................226
HORN ...........................................................................171 Trouble Diagnoses...................................................227
Wiring Diagram - HORN - .......................................171 Electrical Component Inspection .............................239
CIGARETTE LIGHTER................................................172 ASCD Wire Adjustment ...........................................240
Wiring Diagram - CIGAR -.......................................172 POWER WINDOW .......................................................241
CLOCK.........................................................................173 System Description..................................................241
Wiring Diagram - CLOCK -......................................173 Schematic ................................................................243
REAR WINDOW DEFOGGER.....................................174 Wiring Diagram - WINDOW - ..................................244
Component Parts and Harness Connector Trouble Diagnoses...................................................248
Location ...................................................................174 POWER DOOR LOCK - SUPER LOCK -...................251
System Description..................................................174 System Description..................................................251
Wiring Diagram - DEF -...........................................175 Schematic ................................................................253
Trouble Diagnoses...................................................177 Wiring Diagram - S/LOCK -.....................................254
Electrical Components Inspection ...........................180 Trouble Diagnoses...................................................258
EL-2
CONTENTS (Cont'd)
MULTI-REMOTE CONTROL SYSTEM .......................271 ELECTRICAL UNITS LOCATION...............................312
System Description..................................................271 Engine Compartment...............................................312
Wiring Diagram - MULTI - .......................................272 Passenger Compartment.........................................314
Trouble Diagnoses...................................................273 Luggage Compartment ............................................318
ID Code Entry Procedure ........................................279 HARNESS LAYOUT ....................................................319
Remote Controller Battery Replacement.................280 How to Read Harness Layout .................................319
THEFT WARNING SYSTEM (PRE WIRE)..................281 Outline......................................................................320
Wiring Diagram - THEFT -.......................................281 Main Harness...........................................................322
TIME CONTROL UNIT ................................................283 Engine Room Harness ............................................328
Description ...............................................................283 Engine Control Harness ..........................................334
Schematic ................................................................284 Body Harness ..........................................................338
Time Control Unit Inspection Table .........................286 Body No. 2 Harness ................................................342
NATS (NISSAN ANTI-THEFT SYSTEM).....................287 Tail Harness .............................................................346
Component Parts and Harness Connetor Room Lamp Harness...............................................348
Location ...................................................................287 Front Door Harness .................................................349
System Description..................................................288 Rear Door Harness..................................................353
System Composition................................................289 BULB SPECIFICATIONS ............................................355
Wiring Diagram - NATS -.........................................290 Headlamp.................................................................355
CONSULT-II .............................................................291 Exterior Lamp ..........................................................355
Trouble Diagnoses...................................................294 Interior Lamp............................................................355
How to Replace NATS IMMU..................................311 WIRING DIAGRAM CODES (CELL CODES).............356
EL-3
PRECAUTIONS
Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NFEL0001
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL A33 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), seat belt
pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), satellite sensor, diagnosis sensor unit (one of components of air bags for a frontal collision), wiring
harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Wiring Diagrams and Trouble Diagnosis NFEL0002
When you read wiring diagrams, refer to the following:
+ Refer to GI-11, "HOW TO READ WIRING DIAGRAMS"
+ Refer to EL-9, "POWER SUPPLY ROUTING" for power distribution circuit
When you perform trouble diagnosis, refer to the following:
+ Refer to GI-33, "HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS"
+ Refer to GI-22, "HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT"
Check for any Service bulletins before servicing the vehicle.
EL-4
HARNESS CONNECTOR
Description
Description NFEL0003
HARNESS CONNECTOR (TAB-LOCKING TYPE) NFEL0003S01
+ The tab-locking type connectors help prevent accidental looseness or disconnection.
+ The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA
EL-5
HARNESS CONNECTOR
Description (Cont'd)
HARNESS CONNECTOR (SLIDE-LOCKING TYPE) =NFEL0003S02
+ A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
+ The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.
+ The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.
CAUTION:
+ Do not pull the harness or wires when disconnecting the connector.
+ Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V
EL-6
STANDARDIZED RELAY
Description
Description NFEL0004
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS NFEL0004S01
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
SEL881H
TYPE OF STANDARDIZED RELAYS NFEL0004S02
1M 1 Make 2M 2 Make
1T 1 Transfer 1M
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
