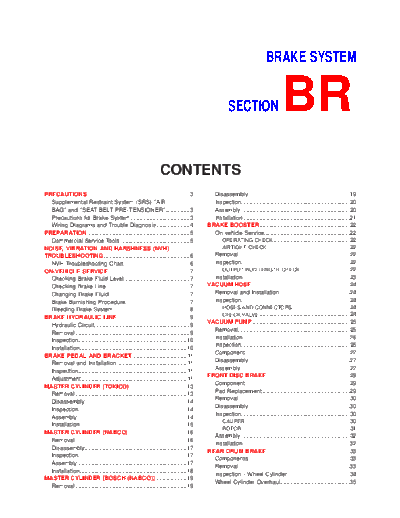

Image preview - the first page of the document
>> Download br documenatation <<Text preview - extract from the document BRAKE SYSTEM
SECTION BR
CONTENTS
PRECAUTIONS ...............................................................3 Disassembly...............................................................19
Supplemental Restraint System (SRS) AIR Inspection...................................................................20
BAG and SEAT BELT PRE-TENSIONER...............3 Assembly ...................................................................20
Precautions for Brake System.....................................3 Installation..................................................................21
Wiring Diagrams and Trouble Diagnosis.....................4 BRAKE BOOSTER........................................................22
PREPARATION ...............................................................5 On-vehicle Service.....................................................22
Commercial Service Tools ...........................................5 OPERATING CHECK ...............................................22
NOISE, VIBRATION AND HARSHNESS (NVH) AIRTIGHT CHECK ...................................................22
TROUBLESHOOTING .....................................................6 Removal.....................................................................22
NVH Troubleshooting Chart.........................................6 Inspection...................................................................22
ON-VEHICLE SERVICE ..................................................7 OUTPUT ROD LENGTH CHECK ..............................22
Checking Brake Fluid Level.........................................7 Installation..................................................................23
Checking Brake Line ...................................................7 VACUUM HOSE.............................................................24
Changing Brake Fluid ..................................................7 Removal and Installation ...........................................24
Brake Burnishing Procedure........................................7 Inspection...................................................................24
Bleeding Brake System ...............................................8 HOSES AND CONNECTORS ...................................24
CHECK VALVE ........................................................24
BRAKE HYDRAULIC LINE .............................................9
VACUUM PUMP ............................................................25
Hydraulic Circuit...........................................................9
Removal.....................................................................25
Removal.......................................................................9
Installation..................................................................26
Inspection...................................................................10
Inspection...................................................................26
Installation..................................................................10
Component ................................................................27
BRAKE PEDAL AND BRACKET..................................11
Disassembly...............................................................27
Removal and Installation ...........................................11
Assembly ...................................................................27
Inspection...................................................................11
FRONT DISC BRAKE ...................................................29
Adjustment .................................................................11
Component ................................................................29
MASTER CYLINDER (TOKICO) ...................................13
Pad Replacement ......................................................29
Removal.....................................................................13
Removal.....................................................................30
Disassembly...............................................................14
Disassembly...............................................................30
Inspection...................................................................14
Inspection...................................................................30
Assembly ...................................................................14
CALIPER .................................................................30
Installation..................................................................15
ROTOR ...................................................................31
MASTER CYLINDER (NABCO) ....................................16
Assembly ...................................................................32
Removal.....................................................................16
Installation..................................................................32
Disassembly...............................................................17
REAR DRUM BRAKE ...................................................33
Inspection...................................................................17
Components...............................................................33
Assembly ...................................................................17
Removal.....................................................................33
Installation..................................................................18
Inspection - Wheel Cylinder ......................................34
MASTER CYLINDER [BOSCH (NABCO)] ...................19
Wheel Cylinder Overhaul...........................................35
Removal.....................................................................19
CONTENTS (Cont'd)
Inspection - Drum ......................................................35 ACTIVE TEST PROCEDURE ....................................66
Inspection - Lining .....................................................35 DATA MONITOR MODE ...........................................67
Installation..................................................................35 ACTIVE TEST MODE ...............................................67
REAR DISC BRAKE......................................................37 TROUBLE DIAGNOSIS - INTRODUCTION..................68
Component ................................................................37 How to Perform Trouble Diagnoses for Quick
Pad Replacement ......................................................37 and Accurate Repair ..................................................68
Removal.....................................................................39 INTRODUCTION ......................................................68
Disassembly...............................................................39 TROUBLE DIAGNOSIS - BASIC INSPECTION ...........69
Inspection...................................................................40 Preliminary Check......................................................69
CALIPER .................................................................40 Ground Circuit Check ................................................72
ROTOR ...................................................................41 ABS ACTUATOR AND ELECTRIC UNIT GROUND.....72
Assembly ...................................................................41 TROUBLE DIAGNOSIS - GENERAL
Installation..................................................................44 DESCRIPTION ...............................................................73
PARKING BRAKE CONTROL ......................................45 Malfunction Code/Symptom Chart.............................73
Components...............................................................45 TROUBLE DIAGNOSES FOR SELF-DIAGNOSTIC
Removal and Installation ...........................................45 ITEMS.............................................................................74
Inspection...................................................................45 Wheel Sensor or Rotor..............................................74
Adjustment .................................................................46 DIAGNOSTIC PROCEDURE .....................................74
ABS Actuator Solenoid Valve or Solenoid Valve
Relay..........................................................................77
ABS
DIAGNOSTIC PROCEDURE .....................................77
DESCRIPTION ...............................................................47 Motor Relay or Motor.................................................80
Purpose......................................................................47 DIAGNOSTIC PROCEDURE .....................................80
ABS (Anti-Lock Brake System) Operation ................47 Low Voltage ...............................................................82
ABS Hydraulic Circuit ................................................47 DIAGNOSTIC PROCEDURE .....................................82
System Components .................................................48 Control Unit................................................................84
System Description....................................................48 DIAGNOSTIC PROCEDURE .....................................84
SENSOR .................................................................48 TROUBLE DIAGNOSES FOR SYMPTOMS .................85
CONTROL UNIT ......................................................48 1. ABS Works Frequently ..........................................85
ABS ACTUATOR AND ELECTRIC UNIT ....................48 2. Unexpected Pedal Action ......................................85
Component Parts and Harness Connector 3. Long Stopping Distance ........................................86
Location .....................................................................50 4. ABS Does Not Work..............................................87
Schematic/Sedan.......................................................51 5. Pedal Vibration and Noise.....................................88
Wiring Diagram - ABS -/Sedan..................................52 6. ABS Warning Lamp Does Not Come On
Schematic/Hatchback ................................................56 When Ignition Switch Is Turned On...........................89
Wiring Diagram - ABS -/Hatchback ...........................57 7. ABS Warning Lamp Stays On When Ignition
ON BOARD DIAGNOSTIC SYSTEM Switch Is Turned On ..................................................91
DESCRIPTION ...............................................................60 REMOVAL AND INSTALLATION .................................93
Self-diagnosis ............................................................60 Wheel Sensors ..........................................................93
FUNCTION ..............................................................60 ABS Actuator and Electric Unit..................................94
SELF-DIAGNOSIS PROCEDURE ..............................60 REMOVAL ...............................................................94
HOW TO READ SELF-DIAGNOSTIC RESULTS INSTALLATION........................................................94
(MALFUNCTION CODES) ........................................60 Sensor Rotor..............................................................95
HOW TO ERASE SELF-DIAGNOSTIC RESULTS REMOVAL ...............................................................95
(MALFUNCTION CODES) ........................................61 INSTALLATION........................................................95
CONSULT-II ...............................................................62
CONSULT-II APPLICATION TO ABS..........................62
ECU (ABS CONTROL UNIT) PART NUMBER SERVICE DATA AND SPECIFICATIONS (SDS) .........96
MODE .....................................................................62 General Specifications...............................................96
CONSULT-II Inspection Procedure............................62 Disc Brake .................................................................96
SELF-DIAGNOSIS PROCEDURE ..............................62 Drum Brake................................................................97
SELF-DIAGNOSTIC RESULTS MODE.......................64
Brake Pedal ...............................................................97
DATA MONITOR PROCEDURE ................................65
Parking Brake ............................................................97
BR-2
PRECAUTIONS
Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NJBR0081
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL N16 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Precautions for Brake System NJBR0002
+ Recommended fluid is brake fluid "DOT 4".
+ Never reuse drained brake fluid.
+ Be careful not to splash brake fluid on painted areas.
+ To clean or wash all parts of master cylinder, disc brake
caliper and wheel cylinder, use clean brake fluid.
+ Never use mineral oils such as gasoline or kerosene. They
will ruin rubber parts of the hydraulic system.
+ Use flare nut wrench when removing and installing brake
tube.
SBR686C
+ Always torque brake lines when installing.
+ Burnish the brake contact surfaces after refinishing or
replacing drums or rotors, after replacing pads or linings,
or if a soft pedal occurs at very low mileage.
Refer to "Brake Burnishing Procedure", "ON-VEHICLE
SERVICE", BR-7.
WARNING:
+ Clean brake pads and shoes with a waste cloth, then wipe
with a dust collector.
BR-3
PRECAUTIONS
Wiring Diagrams and Trouble Diagnosis
Wiring Diagrams and Trouble Diagnosis NJBR0003
When you read wiring diagrams, refer to the following:
+ GI-11, "HOW TO READ WIRING DIAGRAMS"
+ EL-11, "POWER SUPPLY ROUTING"
When you perform trouble diagnosis, refer to the following:
+ GI-32, "HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSES"
+ GI-21, "HOW TO PERFORM EFFICIENT DIAGNOSES FOR AN ELECTRICAL INCIDENT"
BR-4
PREPARATION
Commercial Service Tools
Commercial Service Tools NJBR0004
Tool name Description
1 Flare nut crowfoot Removing and installing each brake piping
2 Torque wrench a: 10 mm (0.39 in)
NT360
Brake fluid pressure Measuring brake fluid pressure
gauge
NT151
BR-5
tom
Symp-
X: Applicable
Reference page
(Possible cause)
BRAKE
SUSPECTED PARTS
der
Noise
Shake
NVH Troubleshooting Chart
Shimmy, Jud-
X
Linings or pads - damaged BR-29, 35, 37
X
Linings or pads - uneven wear BR-29, 35, 37
X
Return springs damaged BR-33
X
Shims damaged BR-29, 37
X
X
Rotor or drum imbalance --
X
Rotor or drum damage --
BR-6
X
Rotor runout BR-31, 41
X
Rotor or drum deformation --
X
Rotor or drum deflection --
X
Rotor or drum rust --
X
Rotor thickness variation BR-31, 41
NVH Troubleshooting Chart
X
Drum out of round BR-35
X
X
DRIVE SHAFT NVH in FA section
X
X
X
AXLE AND SUSPENSION NVH in FA section
X
X
X
TIRES NVH in FA, RA section
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
X
X
X
ROAD WHEEL NVH in FA section
X
X
X
STEERING NVH in ST section
Use the table below to help you find the cause of the symptom. If necessary, repair or replace these parts.
NJBR0005S01
NJBR0005
ON-VEHICLE SERVICE
Checking Brake Fluid Level
Checking Brake Fluid Level NJBR0006
+ Check fluid level in reservoir tank. It should be between Max
and Min lines on reservoir tank.
+ If fluid level is extremely low, check brake system for leaks.
+ Release parking brake lever and see if brake warning lamp
goes off. If not, check brake system for leaks.
SBR451D
Checking Brake Line NJBR0007
CAUTION:
If leakage occurs around joints, retighten or, if necessary,
replace damaged parts.
1. Check brake lines (tubes and hoses) for cracks, deterioration
or other damage. Replace any damaged parts.
2. Check for oil leakage by fully depressing brake pedal while
engine is running.
SBR389C
Changing Brake Fluid NJBR0008
CAUTION:
+ Refill with new brake fluid "DOT 4".
+ Always keep fluid level higher than minimum line on res-
ervoir tank.
+ Never reuse drained brake fluid.
+ Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.
1. Clean inside of reservoir tank, and refill with new brake fluid.
SBR419C
2. Connect a vinyl tube to each air bleeder valve.
3. Drain brake fluid from each air bleeder valve by depressing
brake pedal.
4. Refill until brake fluid comes out of each air bleeder valve.
Use same procedure as in bleeding hydraulic system to refill
brake fluid. Refer to "Bleeding Brake System", BR-8.
Brake Burnishing Procedure NJBR0036
Burnish the brake contact surfaces according to the following pro-
cedure after refinishing or replacing drums or rotors, after replac-
ing pads or linings, or if a soft pedal occurs at very low mileage.
CAUTION:
Only perform this procedure under safe road and traffic con-
ditions. Use extreme caution.
1. Drive the vehicle on a straight smooth road at 50 km/h (31
MPH).
2. Use medium brake pedal/foot effort to bring the vehicle to a
complete stop from 50 km/h (31 MPH). Adjust brake pedal/foot
BR-7
ON-VEHICLE SERVICE
Brake Burnishing Procedure (Cont'd)
pressure such that vehicle stopping time equals 3 to 5 sec-
onds.
3. To cool the brake system, drive the vehicle at 50 km/h (31
MPH) for 1 minute without stopping.
4. Repeat steps 1 to 3, 10 times or more to complete the burnish-
ing procedure.
Bleeding Brake System NJBR0009
CAUTION:
+ Carefully monitor brake fluid level at master cylinder dur-
ing bleeding operation.
+ Fill reservoir with new brake fluid "DOT 4". Make sure it is
full at all times while bleeding air out of system.
+ Place a container under master cylinder to avoid spillage
of brake fluid.
+ For models with ABS, turn ignition switch OFF and dis-
connect ABS actuator connectors or battery ground cable.
SBR995
+ Bleed air in the following order.
Right rear brake Left front brake Left rear brake Right
front brake
1. Connect a transparent vinyl tube to air bleeder valve.
2. Fully depress brake pedal several times.
3. With brake pedal depressed, open air bleeder valve to release
air.
4. Close air bleeder valve.
5. Release brake pedal slowly.
6. Repeat steps 2. through 5. until clear brake fluid comes out of
SBR419C air bleeder valve.
BR-8
BRAKE HYDRAULIC LINE
Hydraulic Circuit
Hydraulic Circuit NJBR0010
NBR355
Removal NJBR0011
CAUTION:
+ Be careful not to splash brake fluid on painted areas; it
may cause paint damage. If brake fluid is splashed on
painted areas, wash it away with water immediately.
+ All hoses must be free from excessive bending, twisting
and pulling.
1. Connect vinyl tube to air bleeder valve.
2. Drain brake fluid from each air bleeder valve by depressing
brake pedal.
SBR992
BR-9
BRAKE HYDRAULIC LINE
Removal (Cont'd)
3. Remove flare nut connecting brake tube and hose, then with-
draw lock spring.
4. Cover openings to prevent entrance of dirt whenever discon-
necting brake line.
Inspection NJBR0012
Check brake lines (tubes and hoses) for cracks, deterioration or
other damage. Replace any damaged parts.
Installation NJBR0013
CAUTION:
+ Refill with new brake fluid "DOT 4".
+ Never reuse drained brake fluid.
1. Tighten all flare nuts and connecting bolts.
Specification:
Flare nut
15 - 18 N
◦ Jabse Service Manual Search 2024 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
