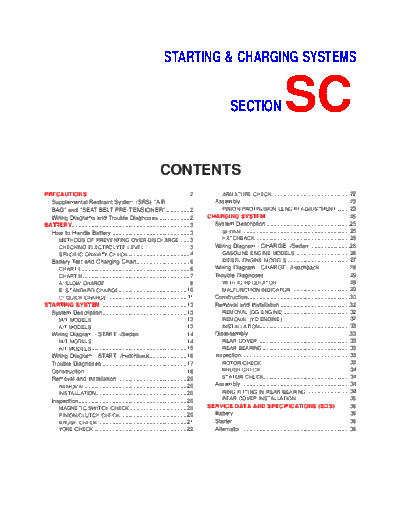

Image preview - the first page of the document
>> Download sc documenatation <<Text preview - extract from the document STARTING & CHARGING SYSTEMS
SECTION SC
CONTENTS
PRECAUTIONS ...............................................................2 ARMATURE CHECK ................................................22
Supplemental Restraint System (SRS) AIR Assembly ...................................................................23
BAG and SEAT BELT PRE-TENSIONER...............2 PINION PROTRUSION LENGTH ADJUSTMENT ........23
Wiring Diagrams and Trouble Diagnoses....................2 CHARGING SYSTEM ....................................................25
BATTERY.........................................................................3 System Description....................................................25
How to Handle Battery ................................................3 SEDAN ...................................................................25
METHODS OF PREVENTING OVER-DISCHARGE ......3 HATCHBACK...........................................................25
CHECKING ELECTROLYTE LEVEL ............................3 Wiring Diagram - CHARGE -/Sedan .........................26
SPECIFIC GRAVITY CHECK ......................................4 GASOLINE ENGINE MODELS ..................................26
Battery Test and Charging Chart.................................6 DIESEL ENGINE MODELS .......................................27
CHART I ...................................................................6 Wiring Diagram - CHARGE -/Hatchback...................28
CHART II ..................................................................7 Trouble Diagnoses.....................................................29
A: SLOW CHARGE ....................................................8 WITH IC REGULATOR .............................................29
B: STANDARD CHARGE ..........................................10 MALFUNCTION INDICATOR ....................................29
C: QUICK CHARGE .................................................11 Construction...............................................................30
STARTING SYSTEM .....................................................13 Removal and Installation ...........................................32
System Description....................................................13 REMOVAL (QG ENGINE) .........................................32
M/T MODELS ..........................................................13 REMOVAL (YD ENGINE)..........................................32
A/T MODELS ...........................................................13 INSTALLATION........................................................33
Wiring Diagram - START -/Sedan .............................14 Disassembly...............................................................33
M/T MODELS ..........................................................14 REAR COVER .........................................................33
A/T MODELS ...........................................................15 REAR BEARING ......................................................33
Wiring Diagram - START -/Hatchback.......................16 Inspection...................................................................33
Trouble Diagnoses.....................................................17 ROTOR CHECK ......................................................33
Construction...............................................................18 BRUSH CHECK .......................................................34
Removal and Installation ...........................................20 STATOR CHECK .....................................................34
REMOVAL ...............................................................20 Assembly ...................................................................34
INSTALLATION........................................................20 RING FITTING IN REAR BEARING ...........................34
Inspection...................................................................20 REAR COVER INSTALLATION .................................35
MAGNETIC SWITCH CHECK ...................................20 SERVICE DATA AND SPECIFICATIONS (SDS) .........36
PINION/CLUTCH CHECK .........................................20 Battery........................................................................36
BRUSH CHECK .......................................................21 Starter ........................................................................36
YOKE CHECK .........................................................22 Alternator ...................................................................36
PRECAUTIONS
Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NJSC0001
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL N16 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by intentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Wiring Diagrams and Trouble Diagnoses NJSC0002
When you read wiring diagrams, refer to the following:
+ GI-11, "HOW TO READ WIRING DIAGRAMS"
+ EL-10, "POWER SUPPLY ROUTING" for power distribution circuit
When you perform trouble diagnoses, refer to the following:
+ GI-32, "HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSES"
+ GI-21, "HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT"
SC-2
BATTERY
How to Handle Battery
How to Handle Battery NJSC0003
CAUTION:
If it becomes necessary to start the engine with a booster
battery and jumper cables,
1) Use a 12-volt booster battery.
2) After connecting battery cables, ensure that they are
tightly clamped to battery terminals for good contact.
3) Never add distilled water through the hole used to check
specific gravity.
METHODS OF PREVENTING OVER-DISCHARGE NJSC0003S01
The following precautions must be taken to prevent over-discharg-
ing a battery.
+ The battery surface (particularly its top) should always be kept
clean and dry.
+ The terminal connections should be clean and tight.
+ At every routine maintenance, check the electrolyte level.
This also applies to batteries designated as "low maintenance"
and "maintenance-free".
MEL040F
+ When the vehicle is not going to be used over a long period of
time, disconnect the negative battery terminal.
MEL041F
+ Check the charge condition of the battery.
Periodically check the specific gravity of the electrolyte. Keep
a close check on charge condition to prevent over-discharge.
MEL042F
CHECKING ELECTROLYTE LEVEL NJSC0003S02
WARNING:
Do not allow battery fluid to come in contact with skin, eyes,
fabrics, or painted surfaces. After touching a battery, do not
touch or rub your eyes until you have thoroughly washed your
hands. If acid contacts eyes, skin or clothing, immediately
flush with water for 15 minutes and seek medical attention.
SC-3
BATTERY
How to Handle Battery (Cont'd)
+ Remove the cell plug using a suitable tool.
+ Add distilled water up to the MAX level.
MEL043F
Sulphation NJSC0003S0201
A battery will be completely discharged if it is left unattended
for a long time and the specific gravity will become less than
1.100. This may result in sulphation on the cell plates.
To determine if a battery has been "sulphated", note its volt-
age and current when charging it. As shown in the figure, less
current and higher voltage are observed in the initial stage of
charging sulphated batteries.
A sulphated battery may sometimes be brought back into ser-
vice by means of a long, slow charge, 12 hours or more, fol-
lowed by a battery capacity test.
SEL709E
SPECIFIC GRAVITY CHECK NJSC0003S03
1. Read hydrometer and thermometer indications at eye level.
MEL042FA
2. Convert into specific gravity at 20
