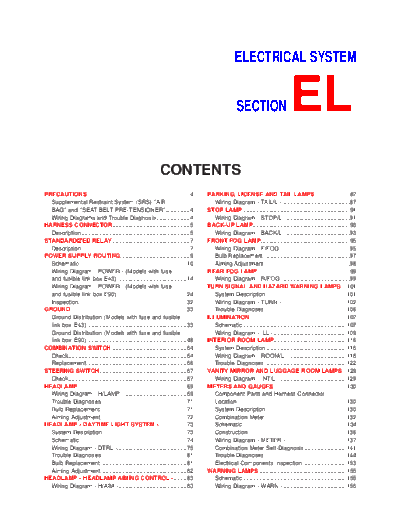

Image preview - the first page of the document
>> Download el documenatation <<Text preview - extract from the document ELECTRICAL SYSTEM
SECTION EL
CONTENTS
PRECAUTIONS ...............................................................4 PARKING, LICENSE AND TAIL LAMPS .....................87
Supplemental Restraint System (SRS) AIR Wiring Diagram - TAIL/L -..........................................87
BAG and SEAT BELT PRE-TENSIONER...............4 STOP LAMP ..................................................................91
Wiring Diagrams and Trouble Diagnosis.....................4 Wiring Diagram - STOP/L - .......................................91
HARNESS CONNECTOR................................................5 BACK-UP LAMP............................................................93
Description ...................................................................5 Wiring Diagram - BACK/L - .......................................93
STANDARDIZED RELAY................................................7 FRONT FOG LAMP.......................................................95
Description ...................................................................7 Wiring Diagram - F/FOG - .........................................95
POWER SUPPLY ROUTING...........................................9 Bulb Replacement .....................................................97
Schematic ..................................................................10 Aiming Adjustment .....................................................98
Wiring Diagram - POWER - (Models with fuse REAR FOG LAMP .........................................................99
and fusible link box E43) ...........................................14 Wiring Diagram - R/FOG -.........................................99
Wiring Diagram - POWER - (Models with fuse TURN SIGNAL AND HAZARD WARNING LAMPS ...101
and fusible link box E90) ...........................................24 System Description..................................................101
Inspection...................................................................32 Wiring Diagram - TURN - ........................................102
GROUND........................................................................33 Trouble Diagnoses...................................................106
Ground Distribution (Models with fuse and fusible ILLUMINATION............................................................107
link box E43)..............................................................33 Schematic ................................................................107
Ground Distribution (Models with fuse and fusible Wiring Diagram - ILL - .............................................109
link box E90)..............................................................48 INTERIOR ROOM LAMP.............................................116
COMBINATION SWITCH ..............................................64 System Description..................................................116
Check.........................................................................64 Wiring Diagram - ROOM/L - ....................................118
Replacement..............................................................66 Trouble Diagnoses...................................................122
STEERING SWITCH......................................................67 VANITY MIRROR AND LUGGAGE ROOM LAMPS ..129
Check.........................................................................67 Wiring Diagram - INT/L - .........................................129
HEADLAMP ...................................................................69 METERS AND GAUGES.............................................130
Wiring Diagram - H/LAMP -.......................................69 Component Parts and Harness Connector
Trouble Diagnoses.....................................................71 Location ...................................................................130
Bulb Replacement .....................................................71 System Description..................................................130
Aiming Adjustment .....................................................72 Combination Meter ..................................................132
HEADLAMP - DAYTIME LIGHT SYSTEM - .................73 Schematic ................................................................134
System Description....................................................73 Construction.............................................................136
Schematic ..................................................................74 Wiring Diagram - METER - .....................................137
Wiring Diagram - DTRL -...........................................75 Combination Meter Self-Diagnosis ..........................141
Trouble Diagnoses.....................................................81 Trouble Diagnoses...................................................144
Bulb Replacement .....................................................81 Electrical Components Inspection ...........................153
Aiming Adjustment .....................................................82 WARNING LAMPS ......................................................155
HEADLAMP - HEADLAMP AIMING CONTROL -........83 Schematic ................................................................155
Wiring Diagram - H/AIM - ..........................................83 Wiring Diagram - WARN - .......................................156
CONTENTS (Cont'd)
Electrical Components Inspection ...........................164 Schematic ................................................................247
WARNING CHIME .......................................................165 Wiring Diagram - WINDOW - ..................................248
Component Parts and Harness Connector Trouble Diagnoses...................................................256
Location ...................................................................165 POWER DOOR LOCK.................................................257
System Description..................................................165 Component Parts and Harness Connector
Wiring Diagram - CHIME - ......................................166 Location/LHD Models ..............................................257
Trouble Diagnoses...................................................170 System Description/LHD Models.............................257
FRONT WIPER AND WASHER ..................................176 Schematic/LHD Models ...........................................258
System Description..................................................176 Wiring Diagram - D/LOCK -/LHD Models................260
Wiring Diagram - WIPER - ......................................178 Trouble Diagnoses/LHD Models..............................272
Removal and Installation .........................................182 POWER DOOR LOCK - SUPER LOCK -...................281
Washer Nozzle Adjustment .....................................183 System Description/RHD Models ............................281
Washer Tube Layout ...............................................183 Schematic/RHD Models...........................................284
REAR WIPER AND WASHER ....................................184 Wiring Diagram - S/LOCK -/RHD Models ...............286
Wiring Diagram - WIP/R -........................................184 Trouble Diagnoses/RHD Models .............................300
Removal and Installation .........................................188 MULTI-REMOTE CONTROL SYSTEM .......................314
Washer Nozzle Adjustment .....................................188 System Description..................................................314
Washer Tube Layout ...............................................189 Wiring Diagram - MULTI - .......................................315
HEADLAMP WASHER ................................................190 Trouble Diagnoses...................................................319
Wiring Diagram - HLC -...........................................190 ID Code Entry Procedure ........................................324
Washer Tube Layout ...............................................192 Remote Controller Battery Replacement.................325
HORN ...........................................................................193 TIME CONTROL UNIT ................................................326
Wiring Diagram - HORN - .......................................193 Description ...............................................................326
CIGARETTE LIGHTER................................................195 Trouble Diagnoses...................................................327
Wiring Diagram - CIGAR -.......................................195 Schematic ................................................................330
CLOCK.........................................................................196 NATS (NISSAN ANTI-THEFT SYSTEM).....................334
Wiring Diagram - CLOCK -......................................196 Component Parts and Harness Connector
REAR WINDOW DEFOGGER.....................................198 Location ...................................................................334
System Description..................................................198 System Description..................................................334
Wiring Diagram - DEF -...........................................199 System Composition................................................335
Trouble Diagnoses...................................................203 Schematic ................................................................336
Electrical Components Inspection ...........................205 Wiring Diagram - NATS -.........................................338
Filament Check........................................................206 CONSULT-II .............................................................346
Filament Repair .......................................................207 Trouble Diagnoses...................................................349
AUDIO ..........................................................................208 How to Replace NATS IMMU..................................369
System Description..................................................208 NAVIGATION SYSTEM ...............................................370
Schematic ................................................................210 Precautions ..............................................................370
Wiring Diagram - AUDIO -.......................................212 Component Parts Location ......................................370
Trouble Diagnoses...................................................230 System Description..................................................370
Inspection.................................................................232 Schematic ................................................................379
AUDIO ANTENNA .......................................................233 Wiring Diagram - NAVI -..........................................381
Location of Antenna.................................................233 Self-diagnosis Mode ................................................401
Antenna Rod Replacement .....................................233 Confirmation/Adjustment Mode ...............................404
HEATED SEAT ............................................................234 Control Panel Mode.................................................416
Wiring Diagram - H/SEAT - .....................................234 Guide Volume Setting..............................................423
POWER SUNROOF.....................................................238 Anti-theft System .....................................................424
Wiring Diagram - SROOF - .....................................238 CONSULT-II .............................................................425
Trouble Diagnoses...................................................240 Trouble Diagnoses...................................................426
DOOR MIRROR ...........................................................241 This Condition Is Not Abnormal...............................432
Wiring Diagram - MIRROR - ...................................241 Program Loading .....................................................441
POWER WINDOW .......................................................245 ELECTRICAL UNITS LOCATION...............................442
System Description..................................................245 Engine Compartment...............................................442
EL-2
CONTENTS (Cont'd)
Passenger Compartment/LHD Models....................444 Body Harness ..........................................................504
Passenger Compartment/RHD Models ...................448 Room Lamp Harness...............................................512
HARNESS LAYOUT ....................................................452 Front Door Harness/LHD Models ............................513
How to Read Harness Layout .................................452 Front Door Harness/RHD Models ...........................517
Outline......................................................................453 Rear Door Harness..................................................521
Main Harness...........................................................456 Back Door Harness .................................................523
Instrument Harness and Audio Harness .................464 BULB SPECIFICATIONS ............................................524
Engine Room Harness ............................................468 Headlamp.................................................................524
Engine Control Harness/QG Engine Models...........480 Exterior Lamp ..........................................................524
Engine Control Harness/SR Engine Models ...........488 Interior Lamp............................................................524
Engine Control Harness/YD Engine Models ...........496 WIRING DIAGRAM CODES (CELL CODES).............525
EL-3
PRECAUTIONS
Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT PRE-TENSIONER"
Supplemental Restraint System (SRS) "AIR
BAG" and "SEAT BELT PRE-TENSIONER" NLEL0001
The Supplemental Restraint System such as "AIR BAG" and "SEAT BELT PRE-TENSIONER" used along with
a seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain types of
collision. The SRS system composition which is available to NISSAN MODEL V10 is as follows (The compo-
sition varies according to the destination and optional equipment.):
+ For a frontal collision
The Supplemental Restraint System consists of driver air bag module (located in the center of the steer-
ing wheel), front passenger air bag module (located on the instrument panel on passenger side), front seat
belt pre-tensioners, a diagnosis sensor unit, warning lamp, wiring harness and spiral cable.
+ For a side collision
The Supplemental Restraint System consists of front side air bag module (located in the outer side of front
seat), side air bag (satellite) sensor, diagnosis sensor unit (one of components of air bags for a frontal
collision), wiring harness, warning lamp (one of components of air bags for a frontal collision).
Information necessary to service the system safely is included in the RS section of this Service Manual.
WARNING:
+ To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance should be per-
formed by an authorized NISSAN dealer.
+ Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the RS section.
+ Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. Spiral cable and wiring harnesses covered with yellow insulation tape either just
before the harness connectors or for the complete harness are related to the SRS.
Wiring Diagrams and Trouble Diagnosis NLEL0002
When you read wiring diagrams, refer to the following:
+ Refer to GI-11, "HOW TO READ WIRING DIAGRAMS"
+ Refer to EL-10, "POWER SUPPLY ROUTING" for power distribution circuit
When you perform trouble diagnosis, refer to the following:
+ Refer to GI-32, "HOW TO FOLLOW TEST GROUP IN TROUBLE DIAGNOSIS"
+ Refer to GI-21, "HOW TO PERFORM EFFICIENT DIAGNOSIS FOR AN ELECTRICAL INCIDENT"
Check for any Service bulletins before servicing the vehicle.
EL-4
HARNESS CONNECTOR
Description
Description NLEL0003
HARNESS CONNECTOR (TAB-LOCKING TYPE) NLEL0003S01
+ The tab-locking type connectors help prevent accidental looseness or disconnection.
+ The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the
illustration below.
Refer to the next page for description of the slide-locking type connector.
CAUTION:
Do not pull the harness or wires when disconnecting the connector.
[Example]
SEL769DA
EL-5
HARNESS CONNECTOR
Description (Cont'd)
HARNESS CONNECTOR (SLIDE-LOCKING TYPE) =NLEL0003S02
+ A new style slide-locking type connector is used on certain systems and components, especially those
related to OBD.
+ The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-
tion.
+ The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the illustra-
tion below.
CAUTION:
+ Do not pull the harness or wires when disconnecting the connector.
+ Be careful not to damage the connector support bracket when disconnecting the connector.
[Example]
SEL769V
EL-6
STANDARDIZED RELAY
Description
Description NLEL0004
NORMAL OPEN, NORMAL CLOSED AND MIXED TYPE RELAYS NLEL0004S01
Relays can mainly be divided into three types: normal open, normal closed and mixed type relays.
SEL881H
TYPE OF STANDARDIZED RELAYS NLEL0004S02
1M 1 Make 2M 2 Make
1T 1 Transfer 1M
