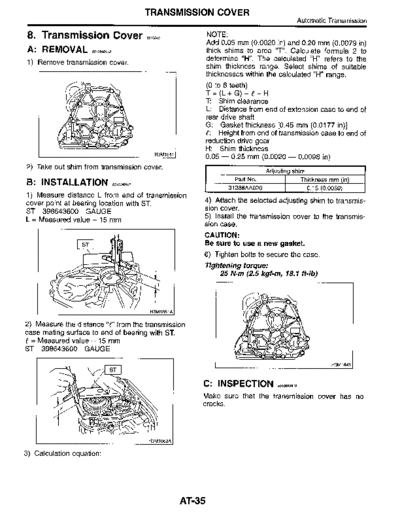

Image preview - the first page of the document
>> Download MSA5T0128A34676 documenatation <<Text preview - extract from the document TRANSMISSION COVER
Automatic Transmission
8. Transmission Cover 55,~~ NOTE :
Add 0 .05 mm (0.0020 in) and 0.20 mm (0.0079 in)
A: REMOVAL S5fO640A18 thick shims to area "T". Calculate formula 2 to
determine "H" . The calculated "H" refers to the
1) Remove transmission cover.
shim thickness range . Select shims of suitable
thicknesses within the calculated "H" range.
(0 to 6 teeth)
T=(L+G)-f -H
T: Shim clearance
L: Distance from end of extension case to end of
rear drive shaft
G : Gasket thickness [0.45 mm (0.0177 in)]
Height from end of transmission case to end of
reduction drive gear
H : Shim thickness
H3M1841
0 .05 - 0.25 mm (0 .0020 - 0.0098 in)
2) Take out shim from transmission cover.
Adjusting shim
Pan No . Thickness mm (in)
B : INSTALLATION 5510640A11
31288AA020 0.15 (0.0059)
1) Measure distance L from end of transmission
cover point at bearing location with ST 4) Attach the selected adjusting shim to transmis-
ST 398643600 GAUGE sion cover.
L = Measured value - 15 mm 5) Install the transmission cover to the transmis-
sion case.
CAUTION:
Be sure to use a new gasket.
6) Tighten bolts to secure the case .
Tightening torque:
25 N~m (2.5 kgf-m, 18.1 ft-Ib)
2) Measure the distance "E" from the transmission
case mating surface to end of bearing with ST.
f = Measured value - 15 mm
ST 398643600 GAUGE
H3M1841
C : INSPECTION 55,~,oA,o
Make sure that the transmission cover has no
cracks .
3) Calculation equation :
AT35
