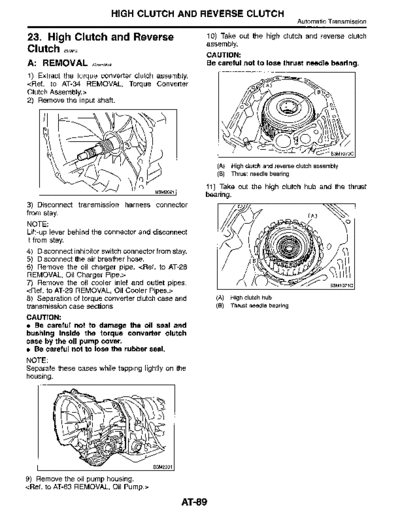

Image preview - the first page of the document
MSA5T0128A34691


>> Download MSA5T0128A34691 documenatation <<

Text preview - extract from the document
                           HIGH CLUTCH AND REVERSE CLUTCH
                                                                                         Automatic Transmission

23. High Clutch and Reverse                             10) Take out the high clutch and reverse clutch
                                                        assembly .
Clutch      S5f0213
                                                        CAUTION:
A : REMOVAL .,o2,.,8                                    Be careful not to lose thrust needle bearing.
1) Extract the torque converter clutch assembly.
                                                                                  e
2) Remove the input shaft.                                          o-"            ( (( ~~)             ~          I


                                                                                                o

                                                                                                        B3M1070C

                                                           (A)   High clutch and reverse clutch assembly
                                                           (B)   Thrust needle bearing

                                                      11) Take out the high clutch hub and the thrust
                                                      bearing .
3) Disconnect transmission harness connector                       o
from stay.                                                                                    (A)
                                                                                                               O
NOTE:
Lift-up lever behind the connector and disconnect
it from stay.
4) Disconnect inhibitor switch connector from stay.
5) Disconnect the air breather hose .                                     ry
6) Remove the oil charger pipe .                                                                             1111
7) Remove the oil cooler inlet and outlet pipes.                                                        B3M1071C

8) Separation of torque converter clutch case and         (A)    High clutch hub
transmission case sections                                (B)    Thrust needle bearing

CAUTION:
* Be careful not to damage the oil seal and
bushing inside the torque converter clutch
case by the oil pump cover.
9 Be careful not to lose the rubber seal .
NOTE:
Separate these cases while tapping lightly on the
housing.




9) Remove the oil pump housing.


                                                 AT89
                                 HIGH CLUTCH AND REVERSE CLUTCH
Automatic Transmission

B : INSTALLATION                  5570213A11
                                                                    NOTE :
                                                                    Make sure that the rubber seal and seal pipe are
1) Install the high clutch hub and thrust needle                    fitted in position .
bearing.
Attach the thrust needle bearing to the hub with
vaseline and install the hub by correctly engaging
the splines of the front planetary carrier.

                                                (c)

                                                (D)



                    V
         (B) I          ~              I~ 0

                                                          (a)           (A)   THREE BOND (Part No . 1215)
                                                                        (B)   Rubber seal
                                        -       ' '   B3M2035A
                                                                    6) Install the torque converter clutch case assem-
   (A)   High clutch hub                                            bly to the transmission case assembly, and secure
   (B)   Thrust needle bearing                                      with six bolts and four nuts .
   (C)   Up side                                                    CAUTION :
   (D)   Down side
                                                                    When installing, be careful not to damage the
2) Install the high clutch assembly.                                torque converter clutch case bushing and oil
                                                                    seal .
NOTE :
Correctly engage the high clutch hub and clutch                     Tightening torque:
splines.                                                                41 N~m (4.2 kgf-m, 30.4 ft-Ib)

         (A)
