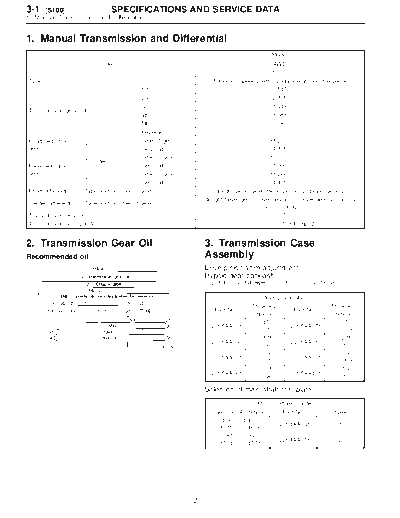

Image preview - the first page of the document
>> Download MSA5T0124A27651 documenatation <<
Text preview - extract from the document
3-1 [S100] SPECIFICATIONS AND SERVICE DATA
1. Manual Transmission and Differential
1. Manual Transmission and Differential
Model
Item AWD
2500 cc
Type 5-forward speeds with synchromesh and 1-reverse
1st 3.545
2nd 2.111
3rd 1.448
Transmission gear ratio
4th 1.088
5th 0.780
Reverse 3.333
Front reduction Type of gear Hypoid
Final
gear Gear ratio 4.111
Type of gear Helical
Transfer
Rear reduction Gear ratio 1.000
gear Type of gear Hypoid
Final
Gear ratio 4.111
Front differential Type and number of gear Straight bevel gear (Bevel pinion: 2, Bevel gear: 2)
Straight bevel gear (Bevel pinion: 2, Bevel gear: 2 and vis-
Center differential Type and number of gear
cous coupling)
Transmission gear oil GL-5
Transmission oil capacity 3.5 (3.7 US qt, 3.1 Imp qt)
2. Transmission Gear Oil 3. Transmission Case
Recommended oil Assembly
Drive pinion shim adjustment
Hypoid gear backlash
0.13 -- 0.18 mm (0.0051 -- 0.0071 in)
Drive pinion shim
Thickness Thickness
Part No. Part No.
mm (in) mm (in)
0.150 0.250
32295AA031 32295AA071
(0.0059) (0.0098)
0.175 0.275
32295AA041 32295AA081
B1H0024 (0.0069) (0.0108)
0.200 0.300
32295AA051 32295AA091
(0.0079) (0.0118)
0.225 0.500
32295AA061 32295AA101
(0.0089) (0.0197)
Selection of main shaft rear plate
Main shaft rear plate
Dimension "A" mm (in) Part No. Mark
4.00 -- 4.13
32294AA041 1
(0.1575 -- 0.1626)
3.87 -- 3.99
32294AA051 2
(0.1524 -- 0.1571)
2
