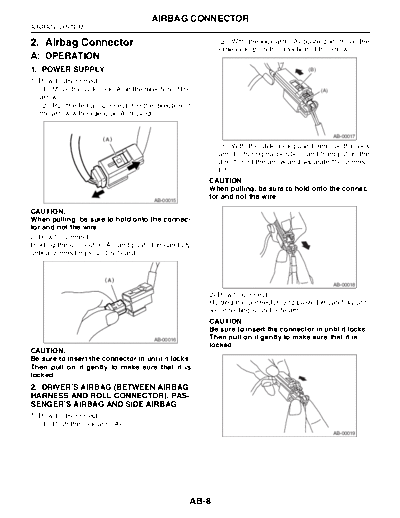

Airbag Connector


>> Download Airbag Connector documenatation <<

Text preview - extract from the document
                                        AIRBAG CONNECTOR
AIRBAG SYSTEM

2. Airbag Connector                                         (2) With the lock arm (A) pushed in, move the
                                                            slide lock (B) in the direction of the arrow.
A: OPERATION
1. POWER SUPPLY                                                                          (B)

1) How to disconnect:
   (1) Move the slide lock (A) in the direction of the                                         (A)
   arrow.
   (2) Pull the female connector in the direction of
   the arrow with slide lock (A) moved.


                                                                                                     AB-00017

                                                            (3) With the slide lock pulled, remove the lock
                                                            arm to its original position, and then pull in the
                                                            direction of the arrow and separate the connec-
                                                            tor.
                                                         CAUTION:
                                                         When pulling, be sure to hold onto the connec-
                                         AB-00015
                                                         tor and not the wire.

CAUTION:
When pulling, be sure to hold onto the connec-
tor and not the wire.
2) How to connect:
Holding the connector (A), and push it in carefully
until a connecting sound is heard.



                                                                                                     AB-00018

                                                         2) How to connect:
                                                         Holding the connector, and push it in carefully until
                                                         a connecting sound is heard.
                                                         CAUTION:
                                                         Be sure to insert the connector in until it locks.
                                         AB-00016        Then pull on it gently to make sure that it is
                                                         locked.
CAUTION:
Be sure to insert the connector in until it locks.
Then pull on it gently to make sure that it is
locked.
2. DRIVER'S AIRBAG (BETWEEN AIRBAG
HARNESS AND ROLL CONNECTOR), PAS-
SENGER'S AIRBAG AND SIDE AIRBAG
1) How to disconnect:
   (1) Push the lock arm (A).
                                                                                                     AB-00019




                                                     AB-8
                                        AIRBAG CONNECTOR
                                                                                             AIRBAG SYSTEM

3. DRIVER'S AIRBAG MODULE AND PRE-                       4. FRONT SUB-SENSOR AND SIDE AIR-
TENSIONER                                                BAG SENSOR
1) How to disconnect:                                    1) How to disconnect:
   (1) Using a flat tip screwdriver, pry the push        Holding outer part (A), pull it in the direction of the
   lock upward to unlock.                                arrow.
                                                         CAUTION:
                                                         When pulling, be sure to hold onto the connec-
                                                         tor and not the wire.




                                         AB-00478

   (2) Pull the connector to disconnect from driv-
   er's side airbag module assembly.
                                                                                                   AB-00024

                                                         2) How to connect:
                                                         Holding the connector, and push it in carefully until
                                                         a connecting sound is heard.
                                                         CAUTION:
