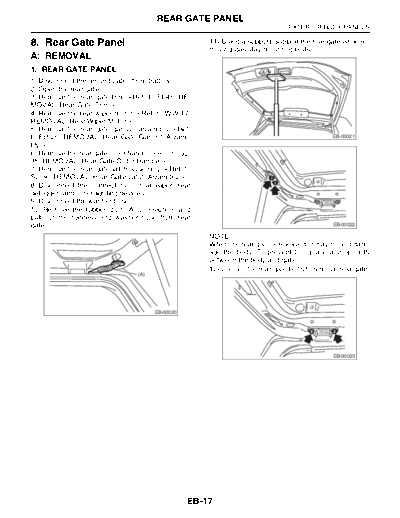

Image preview - the first page of the document
Rear Gate Panel


>> Download Rear Gate Panel documenatation <<

Text preview - extract from the document
                                       REAR GATE PANEL
                                                                               EXTERIOR BODY PANELS

8. Rear Gate Panel                                    11) Using a support, support the rear gate while re-
                                                      moving gas stay mounting bolts.
A: REMOVAL
1. REAR GATE PANEL
1) Disconnect the ground cable from battery.
2) Open the rear gate.
3) Remove the rear gate trim.
4) Remove the rear wiper motor.
5) Remove the rear gate garnish assembly.
6) Remove the rear gate outer handle.
7) Remove the rear gate latch assembly.
8) Disconnect the connectors of rear wiper, rear
defogger, and other lighting devices.
9) Disconnect the washer hose.
10) Remove the rubber duct (A) connection, and
pull out the harness and washer hose from rear
gate.                                                                                         EB-00022

                                                      NOTE:
                                                      When the rear gate is released, it may hit and dam-
                                                      age the body. To prevent this, place a shop cloth
                                                      between the body and gate.
                                                      12) Loosen the rear gate bolts to remove rear gate.
                                 (A)




                                       EB-00020




                                                                                              EB-00023




                                                  EB-17
                                       REAR GATE PANEL
EXTERIOR BODY PANELS

2. REAR GATE DAMPER STAY                             B: INSTALLATION
1) Open the rear gate. Use a jack to support the     1. REAR GATE PANEL
rear gate.
                                                     1) Install in the reverse order of removal.
                                                     2) Install the rear gate panel with uniform clearance
                                                     to the body.
                                                     Refer to COMPONENT of General Description for
                                                     tightening torque.
                                                     NOTE:
                                                     After supporting the rear gate with a jack, start
                                                     working.
                                      EB-00021       2. REAR GATE DAMPER STAY
NOTE:                                                1) Install the mounting bolt (A) to the rear gate pan-
After the rear gate damper stay is removed, the      el and body.
rear gate cannot stay open. Supporting the rear      Tightening torque:
gate with a jack, remove the bolts.                     14 N
