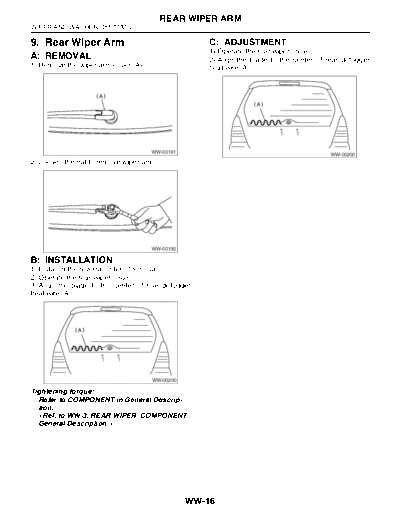

Image preview - the first page of the document
Rear Wiper Arm


>> Download Rear Wiper Arm documenatation <<

Text preview - extract from the document
                                         REAR WIPER ARM
WIPER AND WASHER SYSTEMS

9. Rear Wiper Arm                                   C: ADJUSTMENT
                                                    1) Operate the rear wiper once.
A: REMOVAL                                          2) Align the blade to the center of rear defogger
1) Remove the wiper arm cover (A).                  heat wire (A).




                                     WW-00191                                            WW-00200
2) Loosen the nut to remove wiper arm.




                                     WW-00192

B: INSTALLATION
1) Install in the reverse order of removal.
2) Operate the rear wiper once.
3) Align the blade to the center of rear defogger
heat wire (A).




                                     WW-00200

Tightening torque:
  Refer to COMPONENT in General Descrip-
  tion.





                                                WW-16
