                               HARNESS COMPONENTS LOCATION
                                                                                                            WIRING SYSTEM

46.Harness Components Location

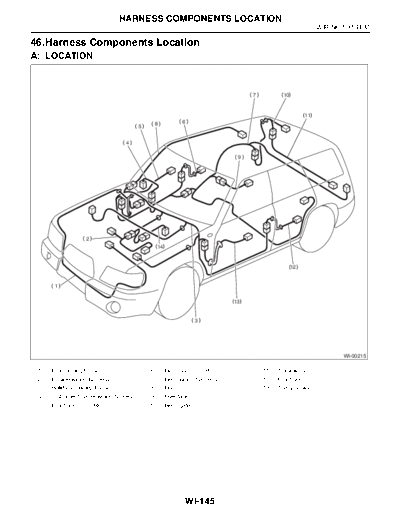

A: LOCATION



                                                                                7            10


                                                                                                       11
                                               8           6
                                         5


                                  4

                                                                            9




                   2
                                                14


                                                                                                  12


        1

                                                                           13


                                                               3




                                                                                                                  WI-00215

 (1)   Front wiring harness                   (6)    Rear door cord RH              (11)   Trunk lid cord
 (2)   Engine wiring harness                  (7)    Rear wiring harness            (12)   Front door cord LH
 (3)   Bulkhead wiring harness                (8)    Roof cord                      (13)   Transmission cord
 (4)   Instrument panel wiring harness        (9)    Fuel tank cord
 (5)   Front door cord RH                    (10)    Rear gate cord




                                                            WI-145
