>> Download Wiper Deicer System documenatation <<Text preview - extract from the document WIPER DEICER SYSTEM
WIRING SYSTEM
45.Wiper Deicer System

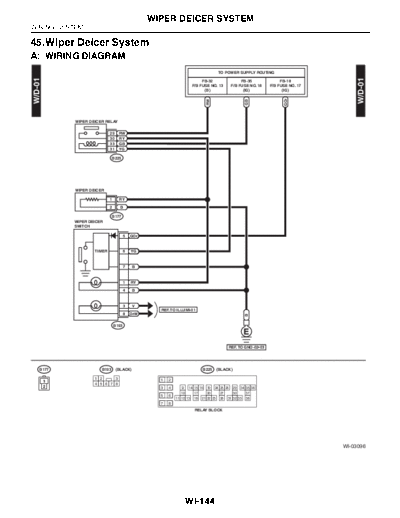

A: WIRING DIAGRAM
TO POWER SUPPLY ROUTING
W/D-01
W/D-01
FB-32 FB-35 FB-18
F/B FUSE NO. 13 F/B FUSE NO. 18 F/B FUSE NO. 17
(B) (IG) (IG)
GOr
RW
GB
WIPER DEICER RELAY
29 RW
30 RY
33 GB
31 YG
B225
WIPER DEICER
1 RY
2 B
B177
WIPER DEICER
SWITCH
5 GOr
TIMER 6 YG
7 B
1 RY
4 B
3 V
REF. TO ILLUMI-01
8 OrW
B
B193
REF. TO GND-02
