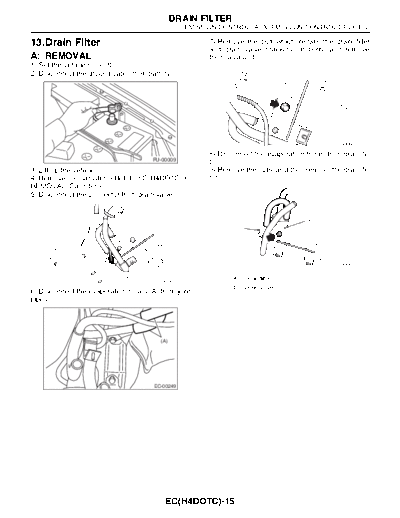

>> Download Drain Filter documenatation <<Text preview - extract from the document DRAIN FILTER
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)
13.Drain Filter 7) Remove the bolt which installs the drain filter
and drain valve brackets on body, and remove
A: REMOVAL them as a unit.
1) Set the vehicle on a lift.
2) Disconnect the ground cable from battery.
EC-00060
8) Disconnect the evaporation hoses from drain fil-
FU-00009 ter.
3) Lift-up the vehicle. 9) Remove the nuts, and then remove the drain fil-
4) Remove the canister.
5) Disconnect the connector from drain valve.
(A)
(B)
EC-00061
EC-00059 (A) Drain filter
(B) Drain valve
6) Disconnect the evaporation hoses (A) from joint
pipes.
(A)
EC-00249
EC(H4DOTC)-15
DRAIN FILTER
EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES)
B: INSTALLATION
Install in the reverse order of removal.
Tightening torque:
18 N
