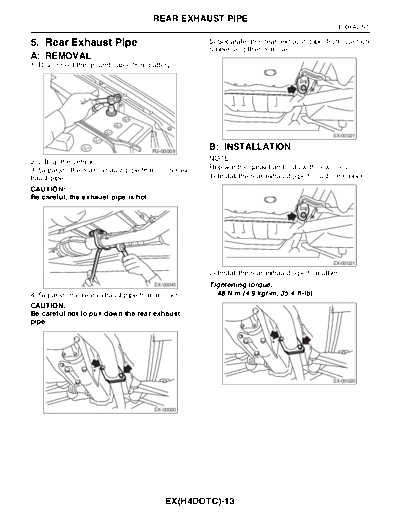

Image preview - the first page of the document
Rear Exhaust Pipe


>> Download Rear Exhaust Pipe documenatation <<

Text preview - extract from the document
                                       REAR EXHAUST PIPE
                                                                                               EXHAUST

5. Rear Exhaust Pipe                                5) Separate the rear exhaust pipe from cushion
                                                    rubber, and then remove.
A: REMOVAL
1) Disconnect the ground cable from battery.




                                                                                             EX-00021


                                       FU-00009
                                                    B: INSTALLATION
2) Lift-up the vehicle.                             NOTE:
3) Separate the rear exhaust pipe from center ex-   Replace the gasket and nuts with new ones.
haust pipe.                                         1) Install the rear exhaust pipe to cushion rubber.
CAUTION:
Be careful, the exhaust pipe is hot.




                                                                                             EX-00021

                                                    2) Install the rear exhaust pipe to muffler.
                                       EX-00045     Tightening torque:
4) Separate the rear exhaust pipe from muffler.       48 N
