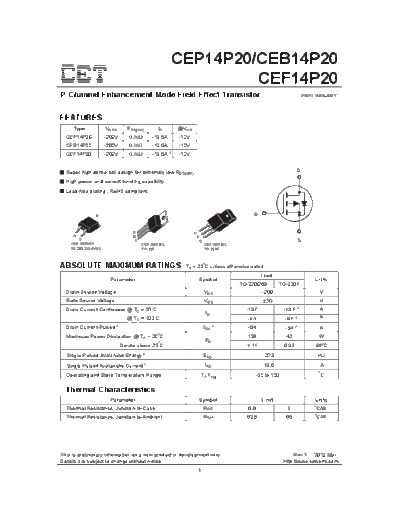

Image preview - the first page of the document



>> Download cef14p20_cep14p20_ceb14p20 documenatation <<

Text preview - extract from the document

                                                 CEP14P20/CEB14P20
                                                          CEF14P20
P-Channel Enhancement Mode Field Effect Transistor                                                                 PRELIMINARY



FEATURES
     Type            VDSS    RDS(ON)       ID      @VGS
  CEP14P20           -200V    0.36      -13.5A     -10V
  CEB14P20           -200V    0.36      -13.5A     -10V
  CEF14P20           -200V    0.36      -13.5A d   -10V


  Super high dense cell design for extremely low RDS(ON).                                                      D

  High power and current handing capability.
  Lead-free plating ; RoHS compliant.



               D                                                                      G


                               G                          G
     G                         D                              D
        S                       S                                                                              S
                                                                  S
    CEB SERIES                      CEP SERIES                        CEF SERIES
    TO-263(DD-PAK)                  TO-220                            TO-220F



ABSOLUTE MAXIMUM RATINGS                             Tc = 25 C unless otherwise noted
                                                                                    Limit
                       Parameter                          Symbol                                                       Units
                                                                           TO-220/263              TO-220F
  Drain-Source Voltage                                                VDS                  -200                         V
  Gate-Source Voltage                                                 VGS
